MS7 4-Speed Automatic Transmission

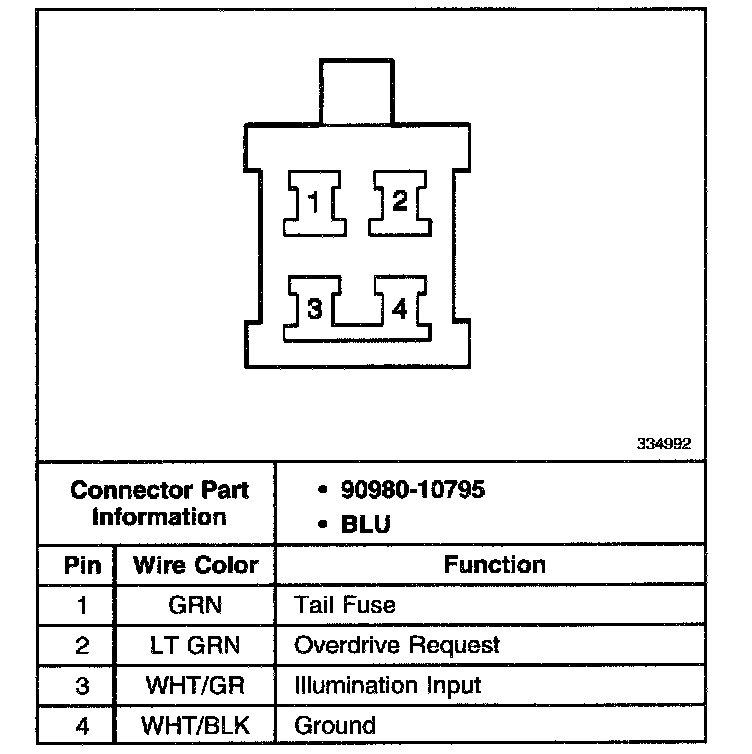

Overdrive Switch

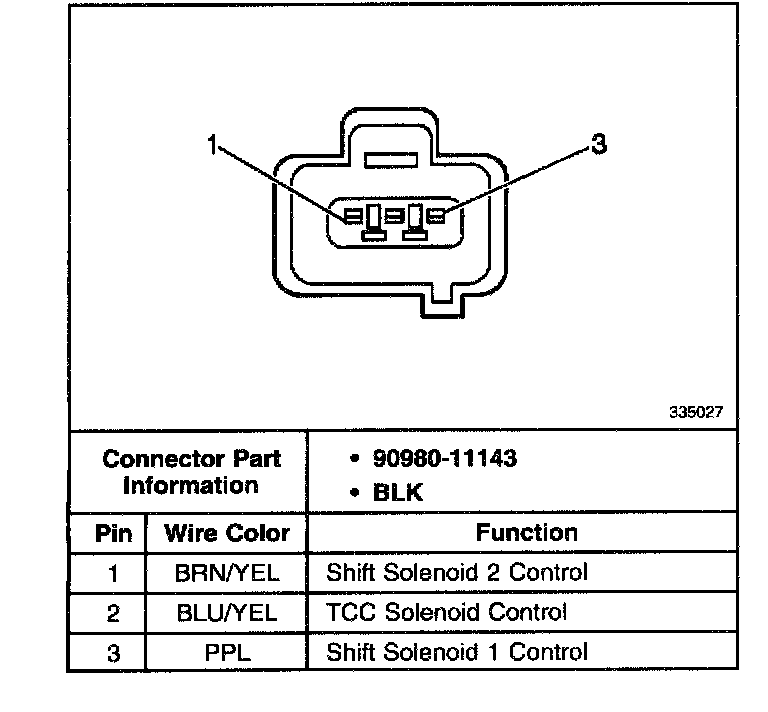

Torque Converter Clutch (TCC) Solenoid






Vehicle speed Sensor

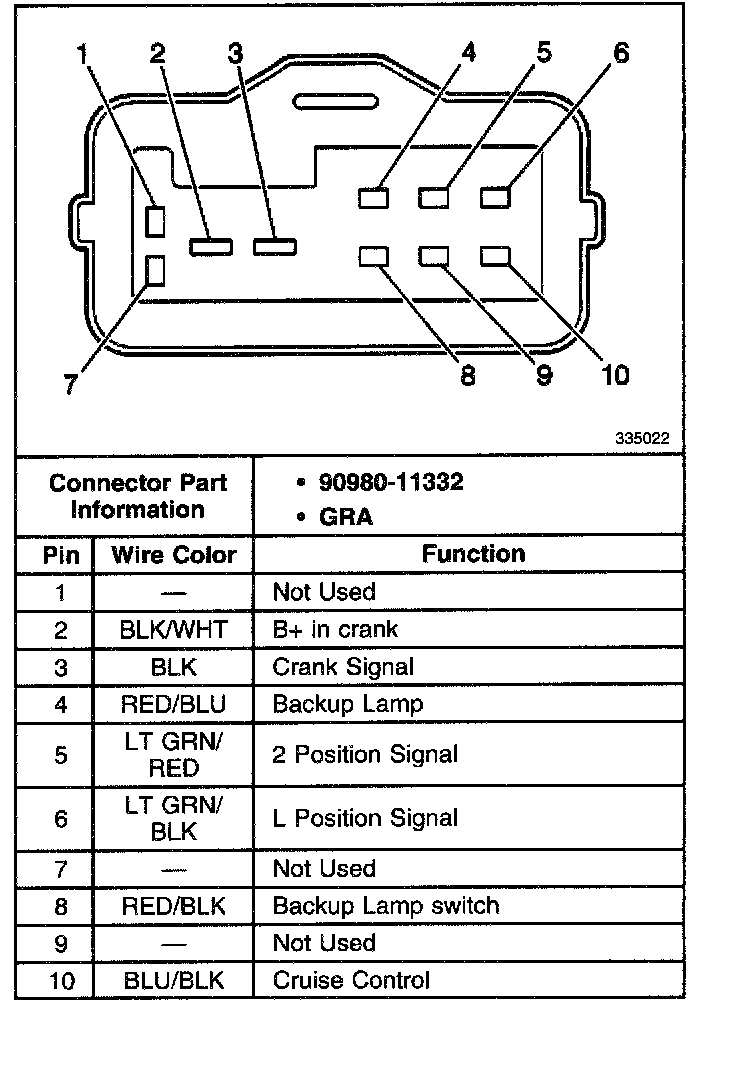

PNP Switch
