Home >> Chevrolet >> 1999 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Lamp >> Park/Turn Lamp, Right Front

Park/Turn Lamp, Right Front

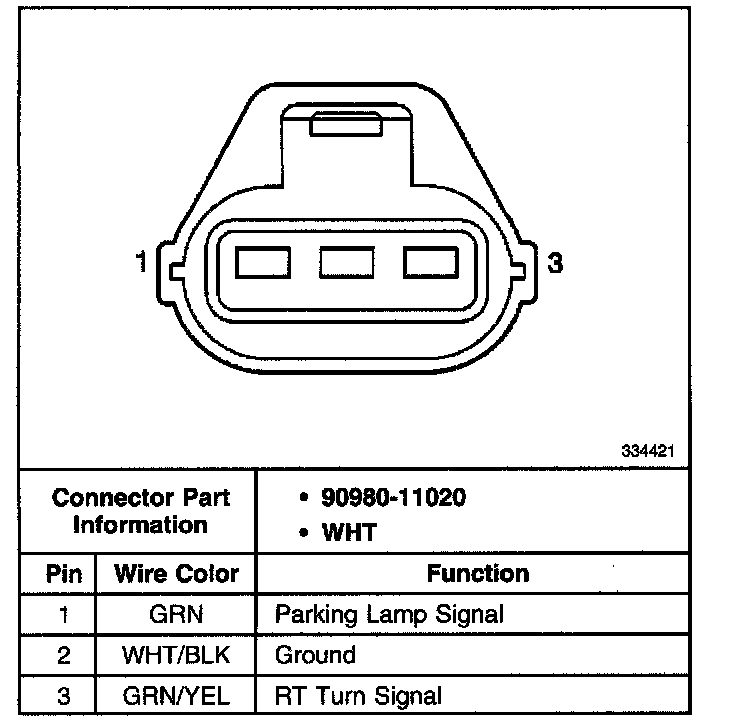

Right Front Park/Turn Lamp:
