Home
>>
Chevrolet
>>
1999
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>

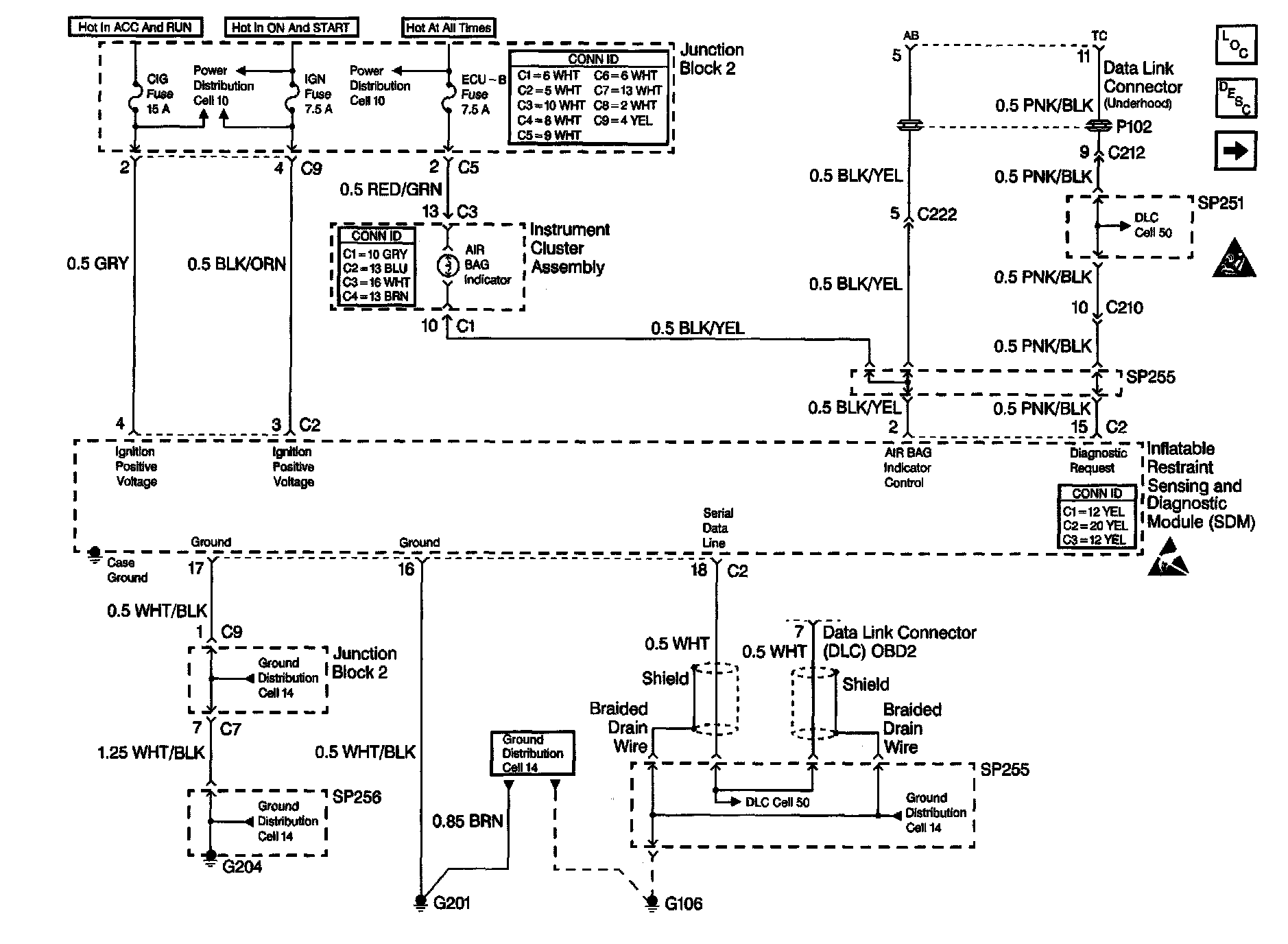

Air Bag Indicator/Sensing and Diagnostic Module
Air Bag Indicator/Sensing and Diagnostic Module
