Home >> Chevrolet >> 1999 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> Steering Wheel Module Coil, Discriminating Sensors, & Seat Belt

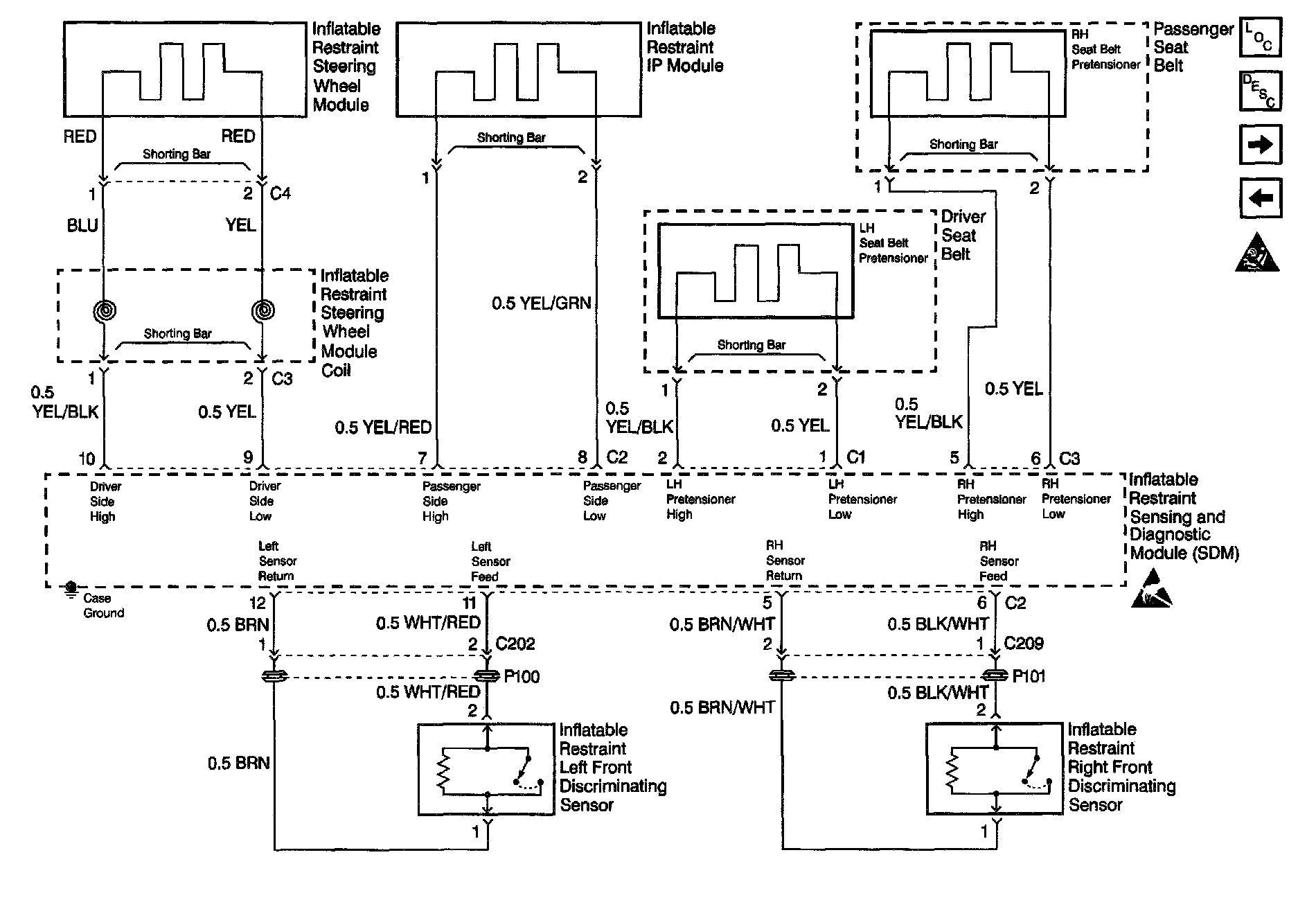

Steering Wheel Module Coil, Discriminating Sensors, & Seat Belt
