HVAC System - Manual

Blower Motor and Fan Replacement

REMOVAL PROCEDURE
1. Remove the Instrument Panel (IP) compartment.
2. Disconnect the blower motor electrical connector.

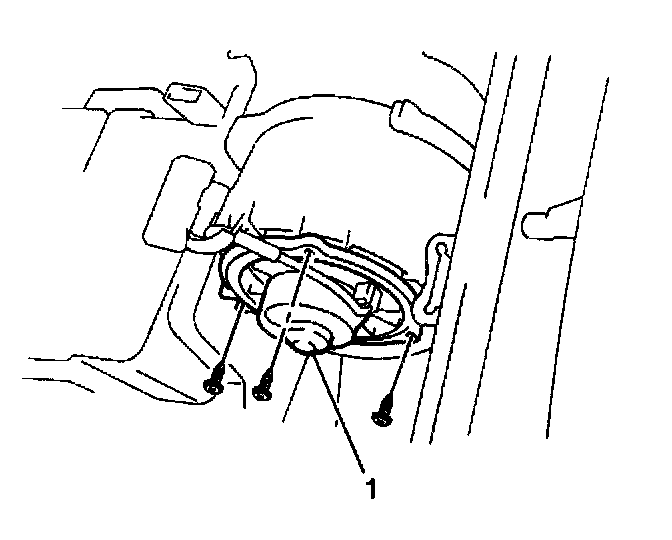

3. Remove the three screws and the blower motor and fan (1) from the vehicle.

INSTALLATION PROCEDURE
1. Install the blower motor and fan (1) to the vehicle. Secure with the three screws.
2. Connect the blower motor electrical connector.
3. Install the IP compartment.
