Instrument Panel (IP) - Center Support Bracket Replacement

REMOVAL PROCEDURE



1. Remove the instrument panel assembly.
2. Remove the connector housing bracket from the right I/P center support brace.

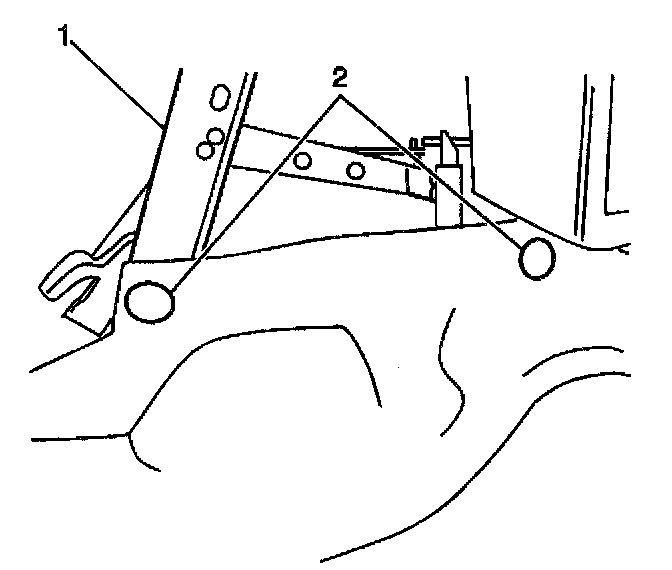

3. Remove the 2 plastic retainers (2) which secure the floor panel carpet to the I/P center support braces (1).




4. Remove the following components from the vehicle:
^ The 3 nuts
^ The 2 bolts
^ The I/P center support braces (5)

INSTALLATION PROCEDURE




NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the I/P center support braces (5) to the vehicle. Secure the braces with the following retainers:
^ The 3 nuts
^ The 2 bolts

Tighten
Tighten the I/P center support brace nuts and bolts to 20 N.m (15 lb ft.).




2. Install the 2 plastic retainers (2) which secure the floor panel carpet to the I/P center support braces (1).
3. Install the connector housing bracket to the right I/P center support brace.
4. Install the instrument panel assembly.
