Instrument Panel (IP) - Cluster Trim Panel Replacement





REMOVAL PROCEDURE

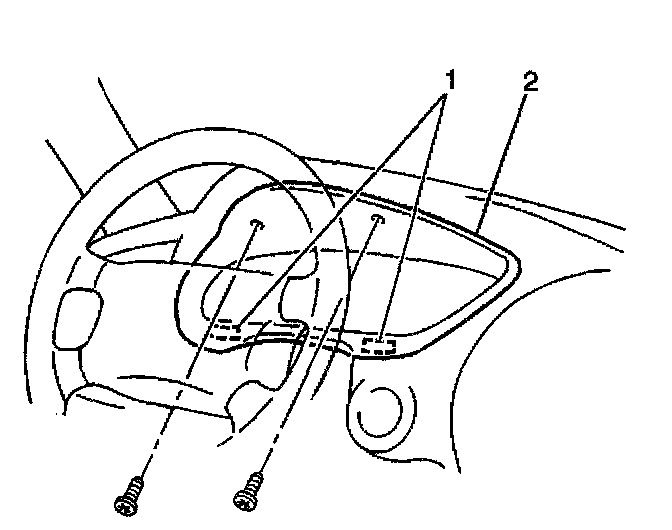

1. Remove the 2 screws which secure the IP cluster trim plate (2).
2. Disengage the 2 lower clips (1).
3. Gently remove the cluster trim plate (2) from the instrument panel assembly.

INSTALLATION PROCEDURE
Gently install the IP cluster trim plate (2) by pressing into place until fully seated. Secure the trim plate with the 2 screws.
