Instrument Panel Cluster (IPC) - Replacement

REMOVAL PROCEDURE

IMPORTANT: The ignition switch must be in the OFF position when removing the instrument cluster assembly.




1. Remove the IP cluster trim plate.

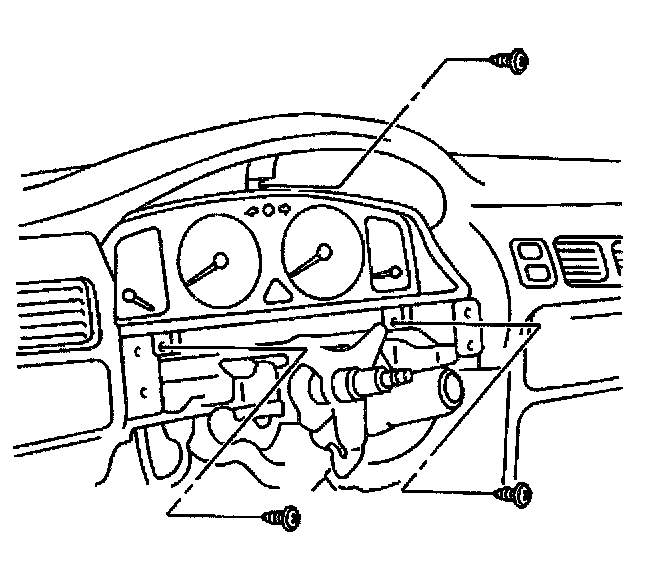

2. Remove the 3 screws which secure the instrument cluster assembly.

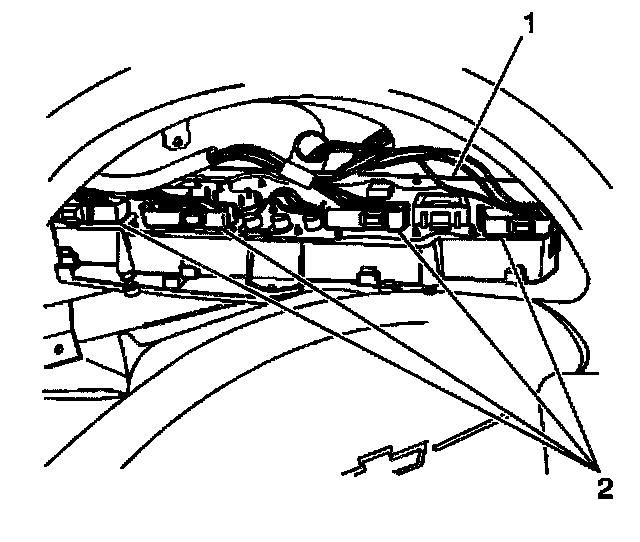

3. Disconnect the 4 electrical connectors (2) from the cluster assembly (1).
4. Remove the cluster assembly (1) from the instrument panel assembly.

INSTALLATION PROCEDURE



1. Connect the 4 electrical connectors (2) to the instrument cluster assembly (1).




2. Install the cluster assembly to the instrument panel assembly. Secure the assembly with the 3 screws.
3. Install the IP cluster trim plate.
