Powertrain Controls

Power and Ground

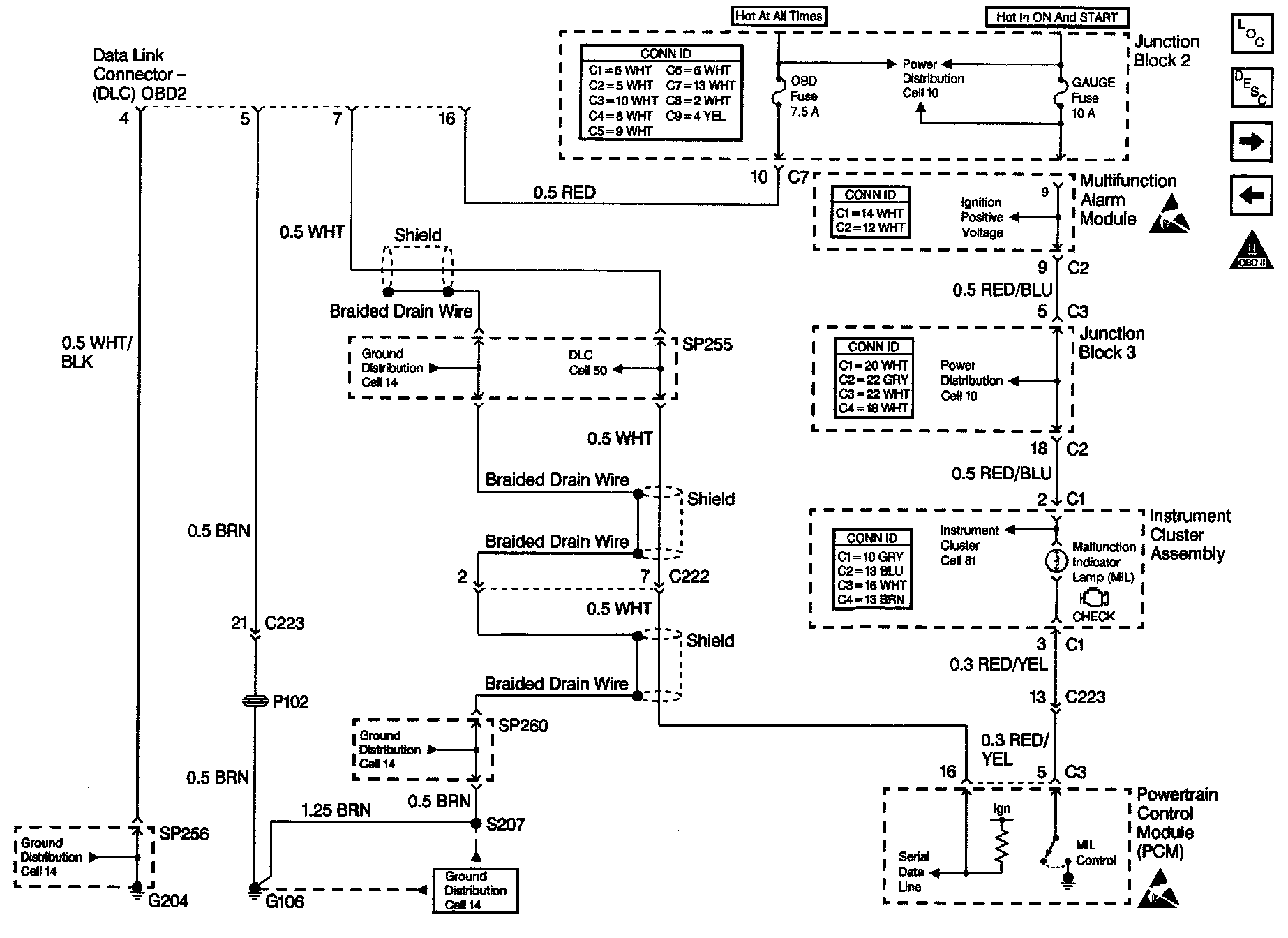

MIL and DLC




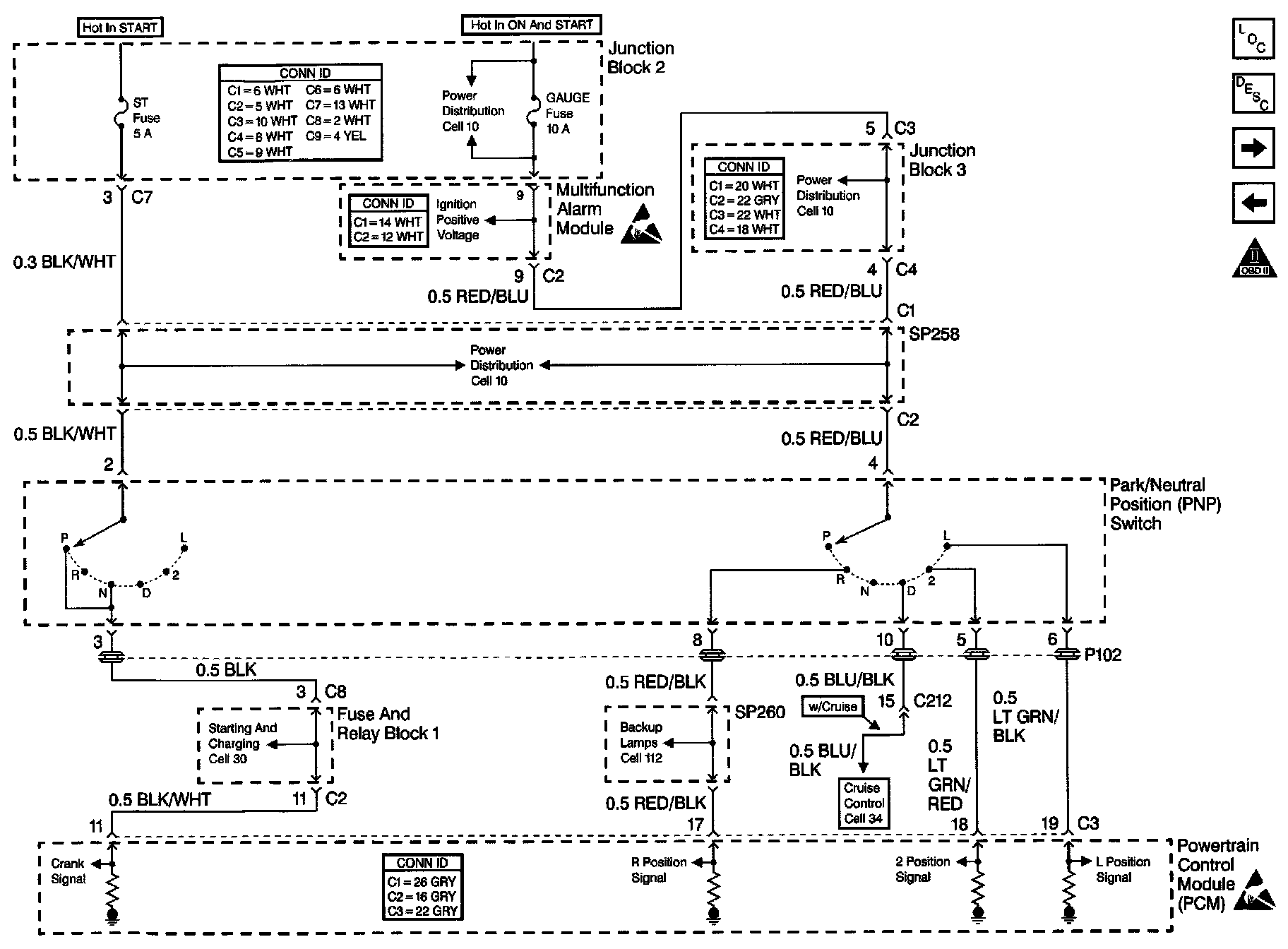

Main Power Feed




Ignition System

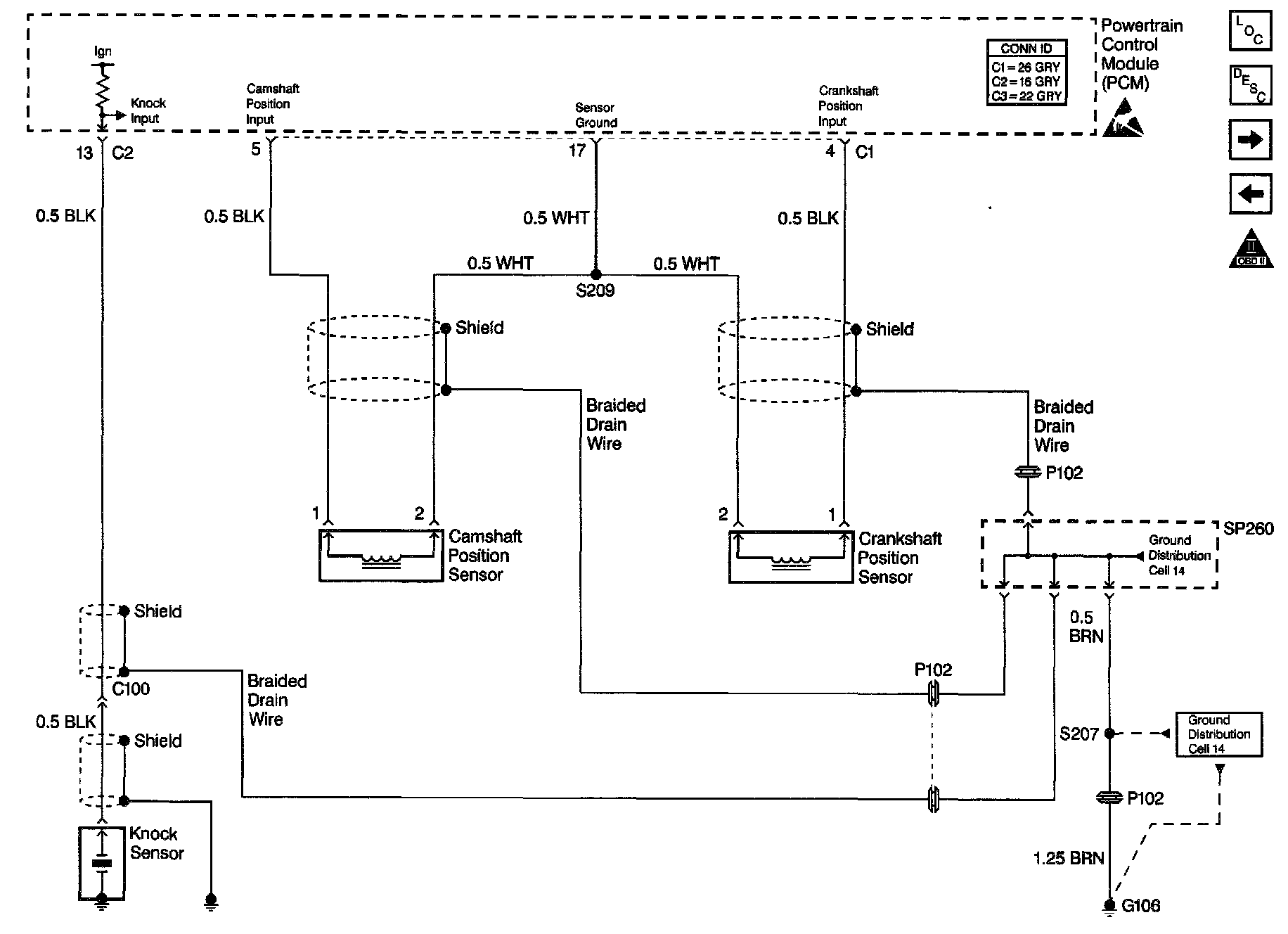

CMP and CKP Sensors

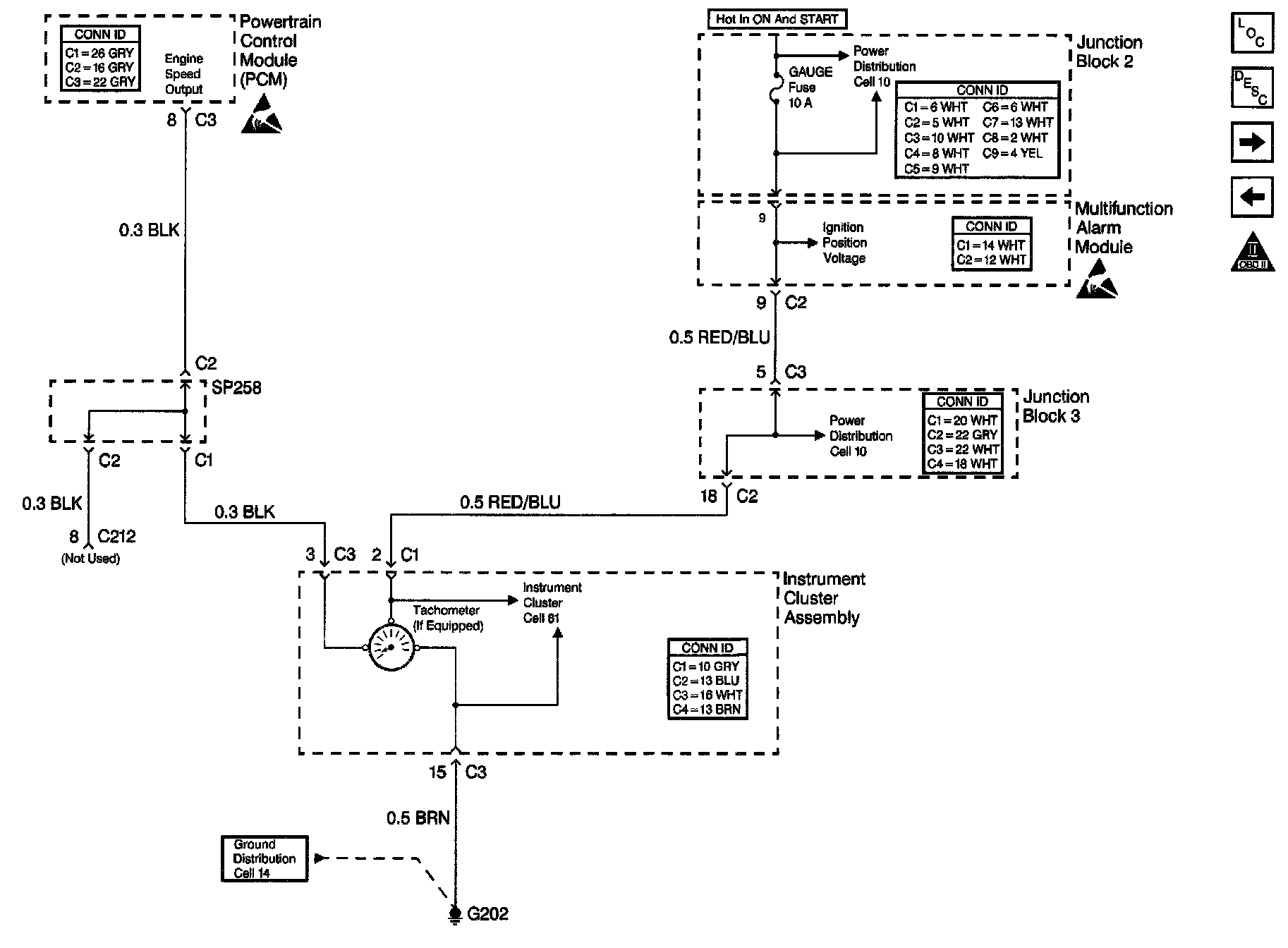

Tachometer

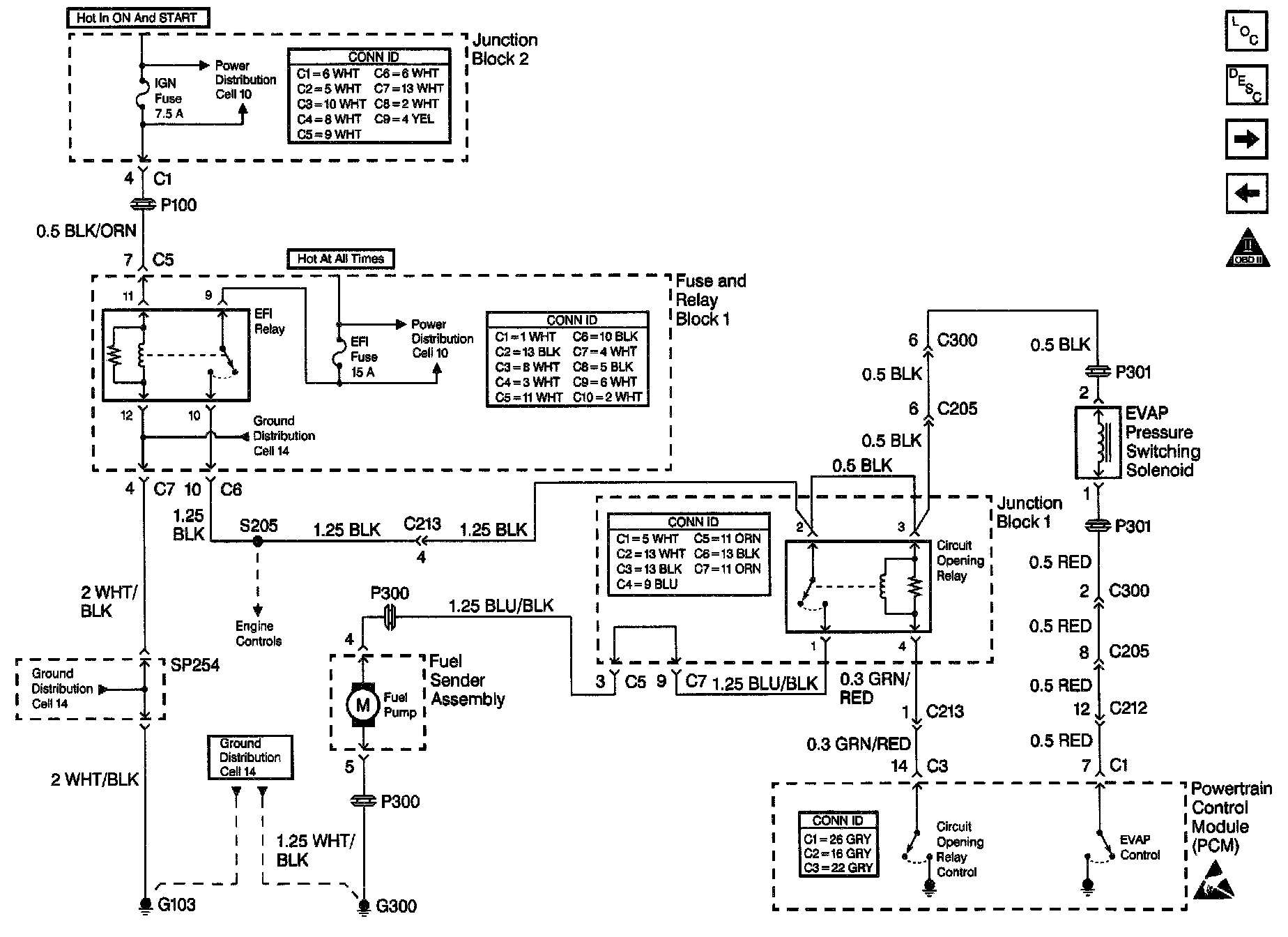

Fuel Supply System




Fuel Injectors

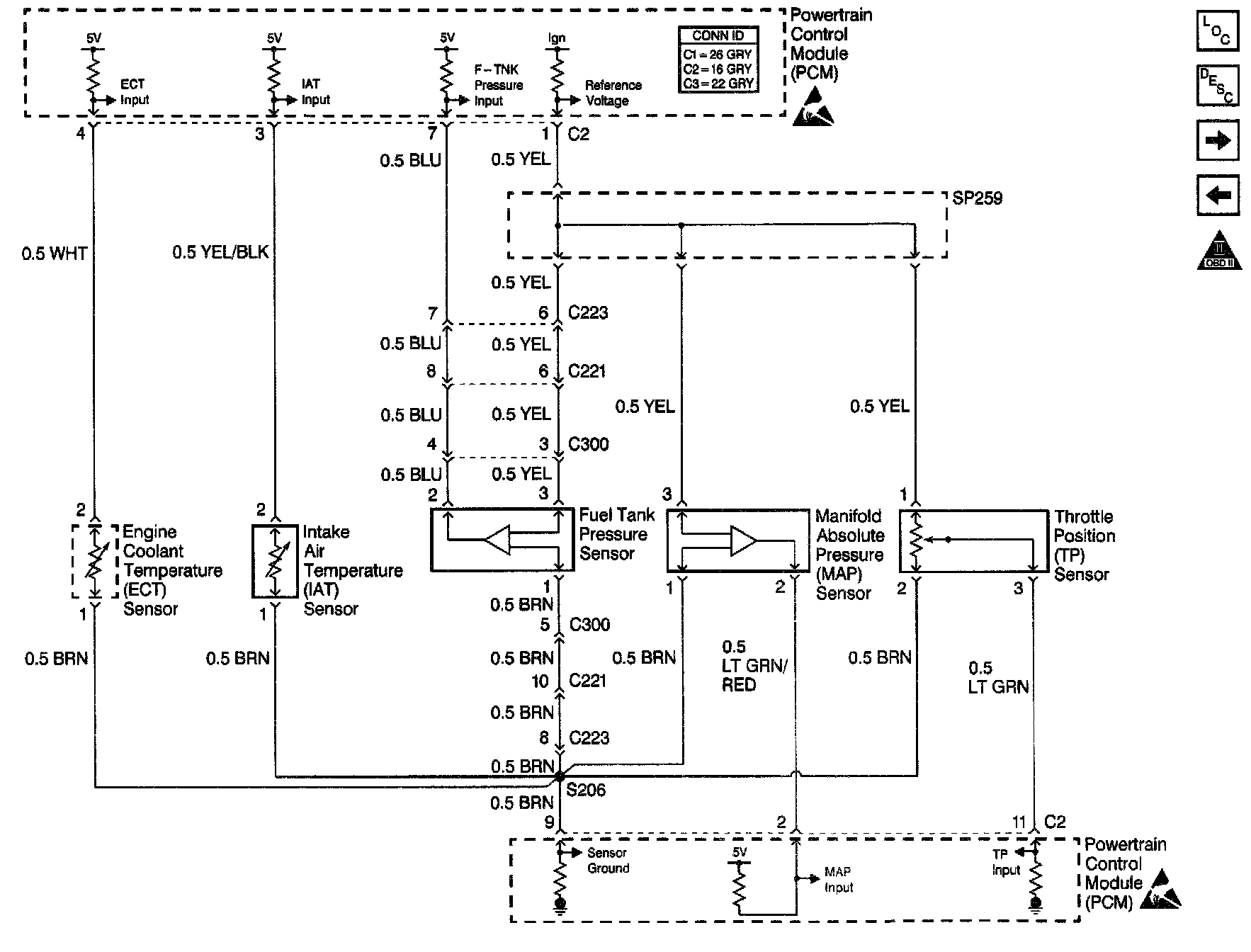

Engine Data Sensors

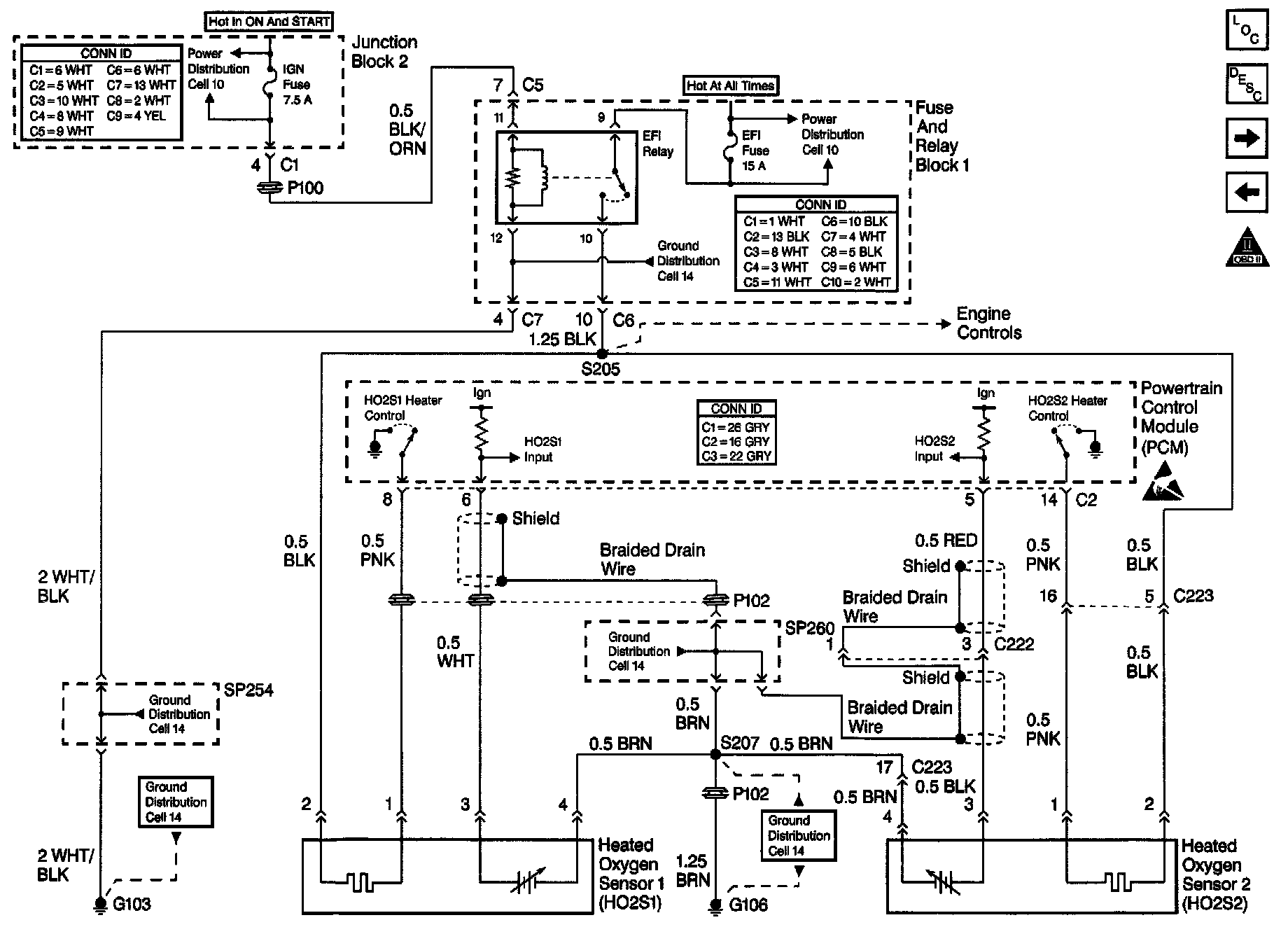

HO2S

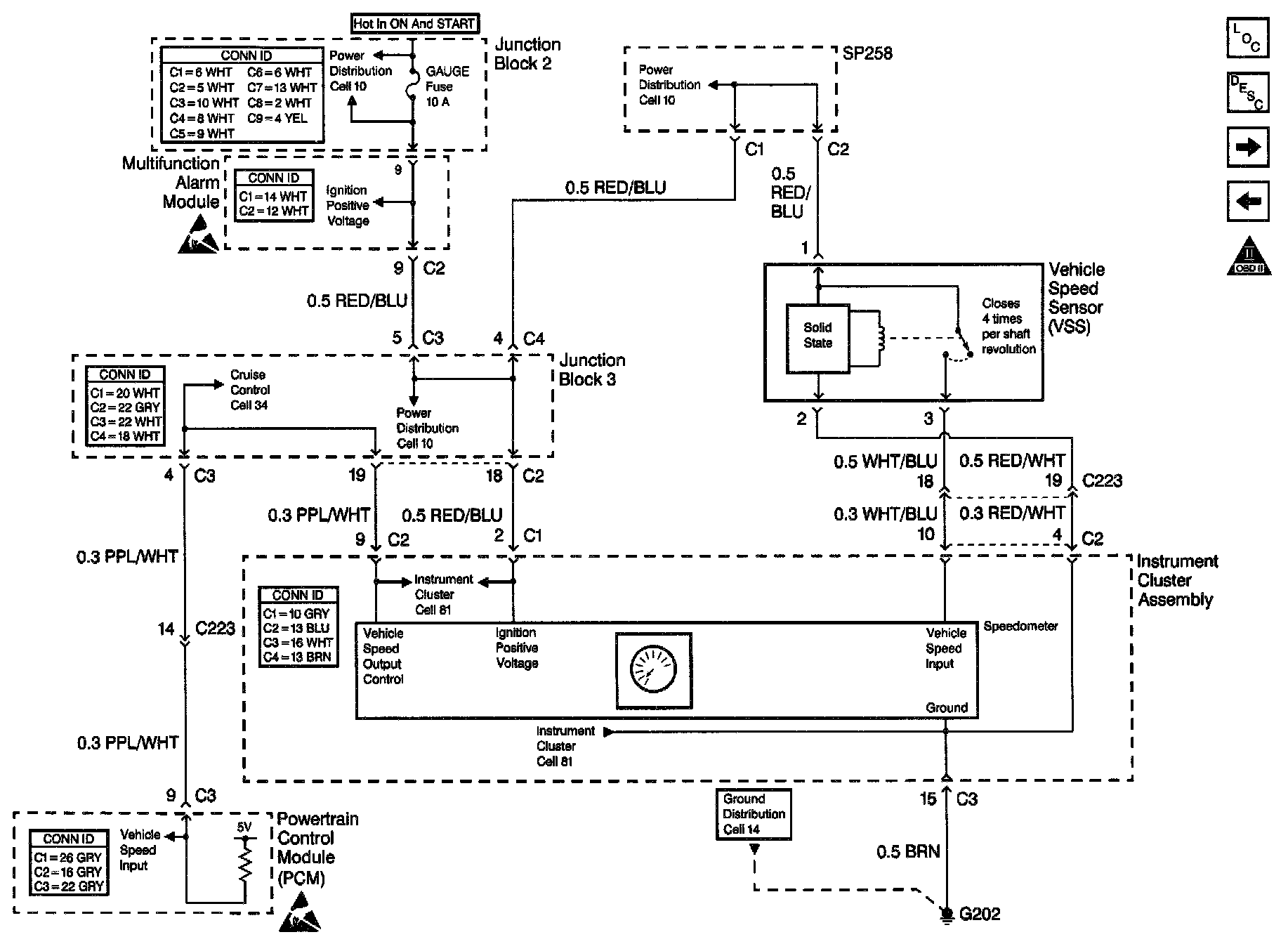

VSS Output

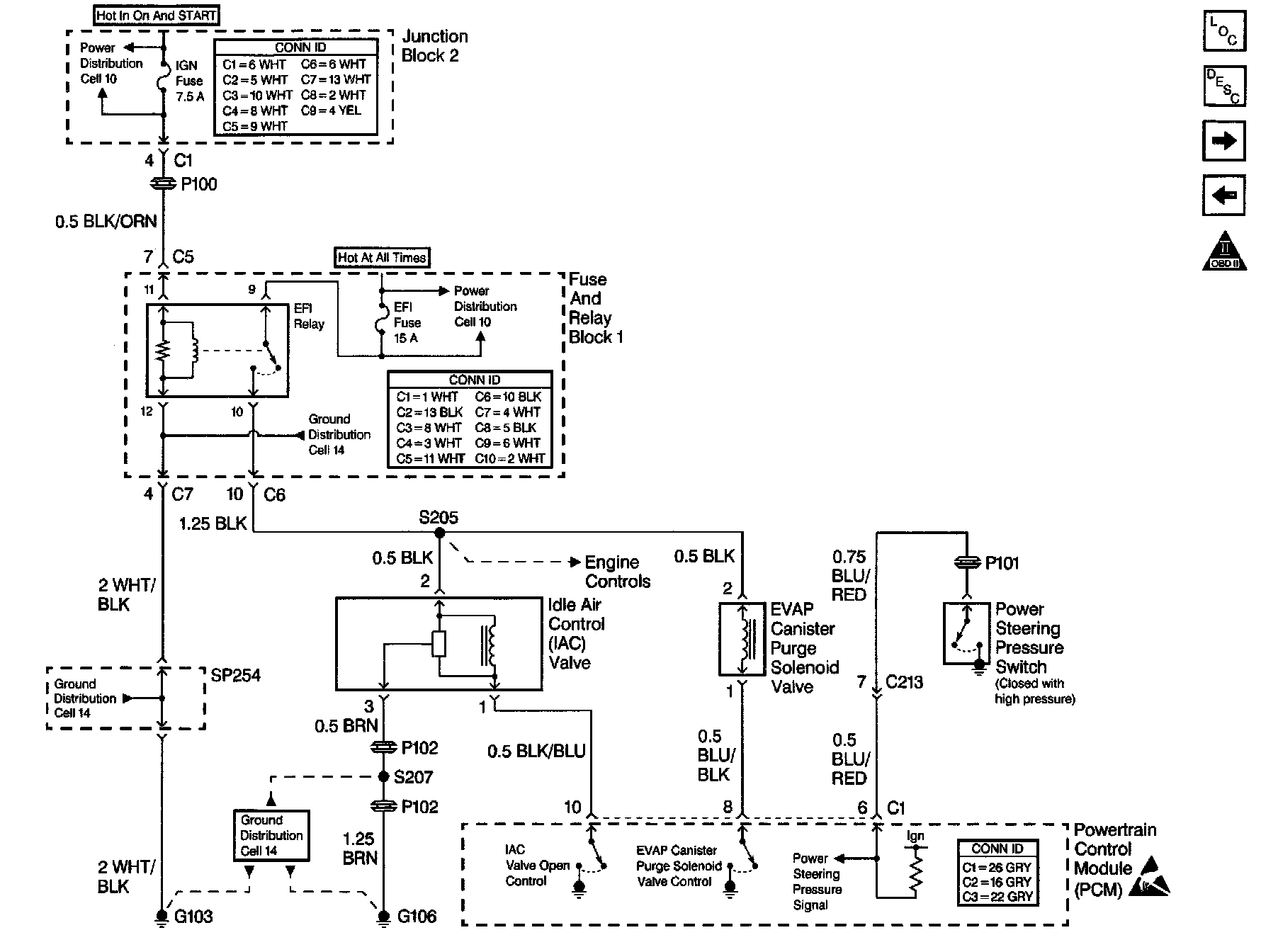

[1][2]EVAP Controls, IAC and PSP Switch




Idle-Up Signals




A/T Controls - Inputs

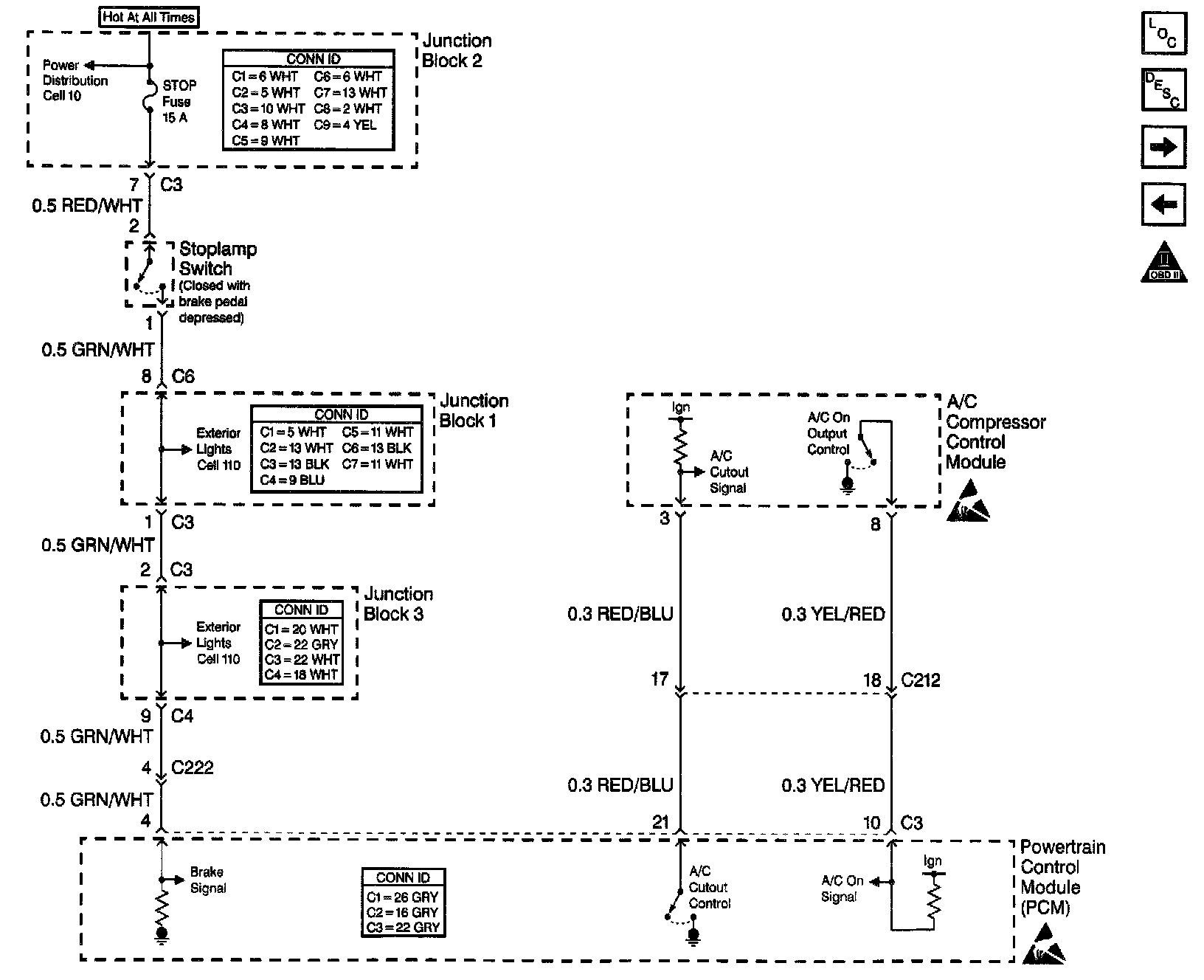

A/C Controls




A/T Controls - Outputs
