Refrigerant Pressure Sensor / Switch: Locations

Locations View:

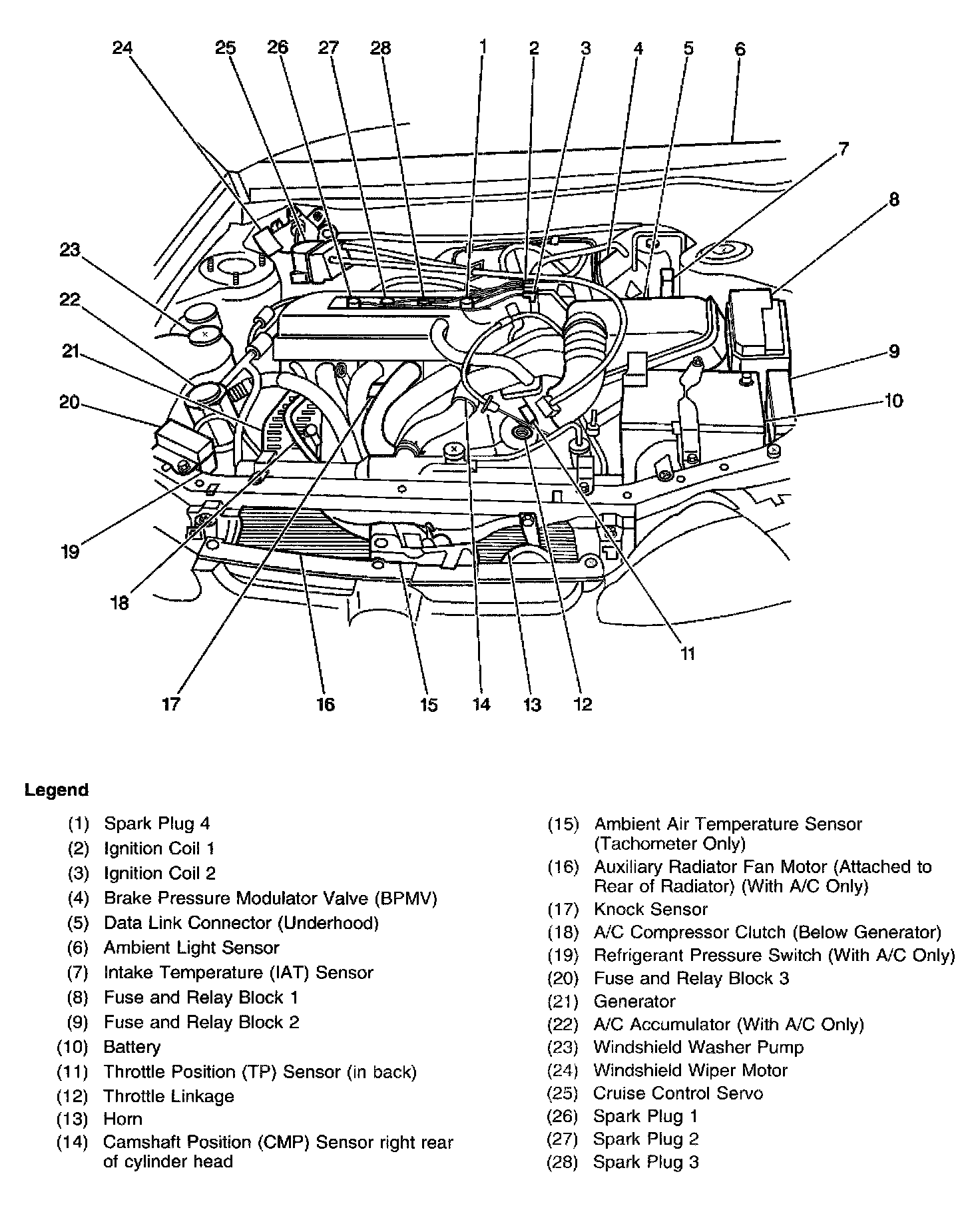

Engine Compartment View:





RH side of engine compartment near radiator
