Ignition Switch
Ignition Switch
Power Distribution Schematics: Ignition Switch, IGN Fuse, And ST Fuse:

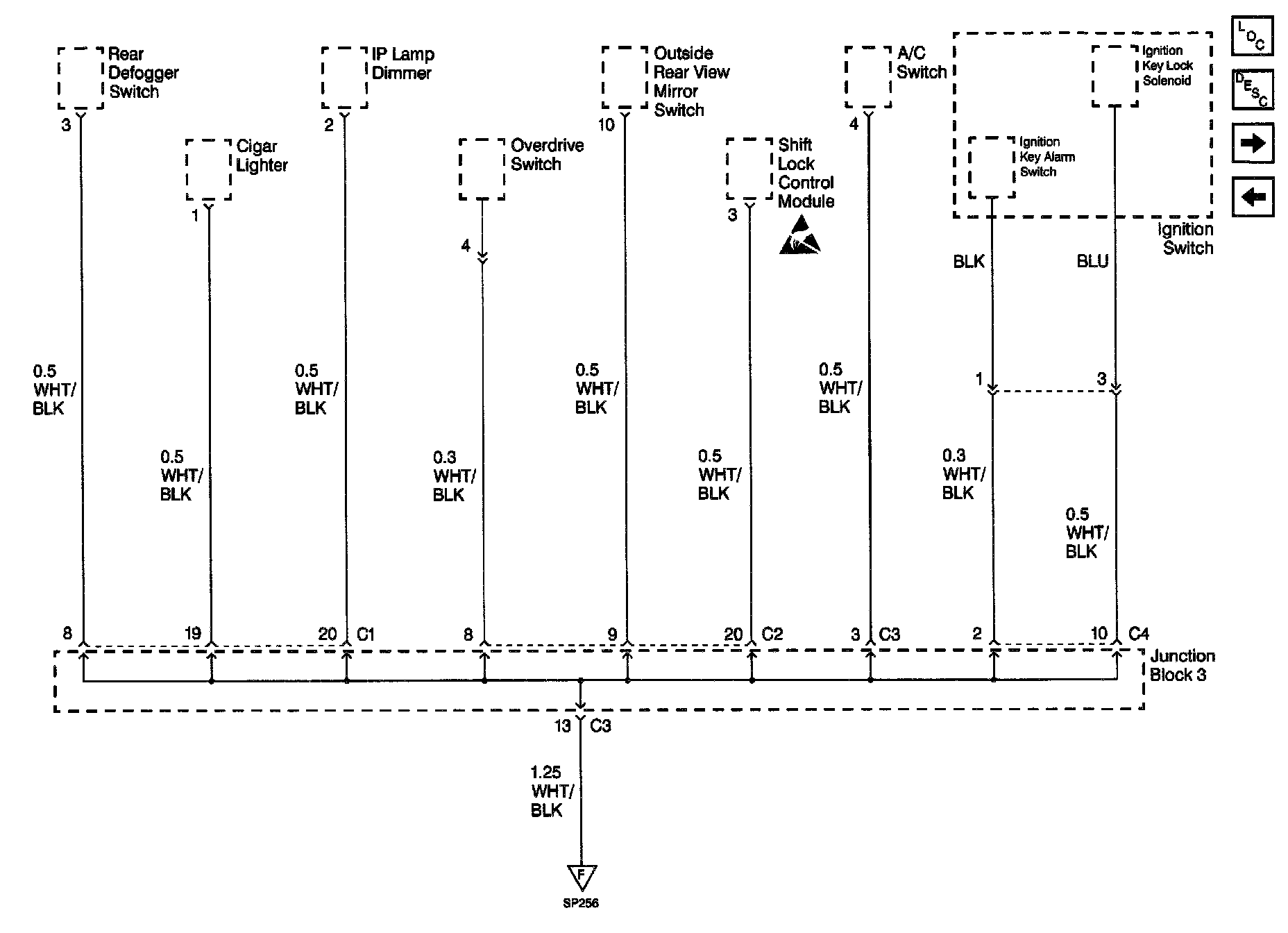

Ground Distribution Schematics: Junction Block 3:
