Instrument Panel (IP) - Accessory Switch Replacement

REMOVAL PROCEDURE

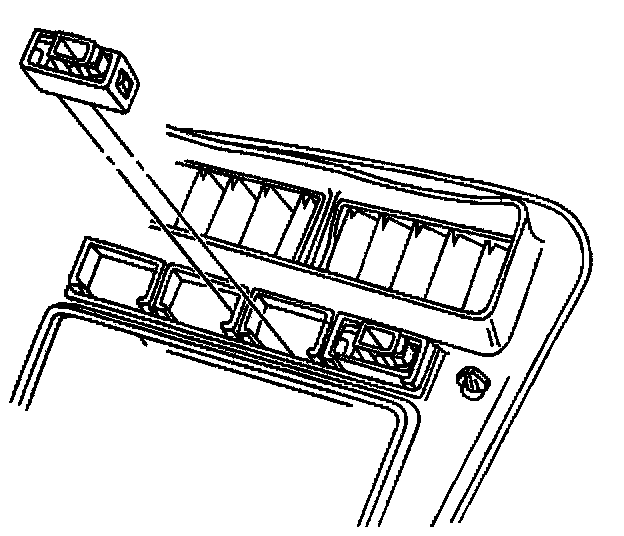

1. Unsnap the instrument panel (IP) accessory trim plate (2).
2. Remove the electrical connectors (1) from the switches (3), if equipped.




3. Remove the fog lamp or second gear start switch located in position 1, it equipped.




4. Remove the second gear start, rear fog lamp, or traction control switch located in position 2, if equipped.
5. Remove the rear fog lamp switch located in position 3, if equipped.

INSTALLATION PROCEDURE

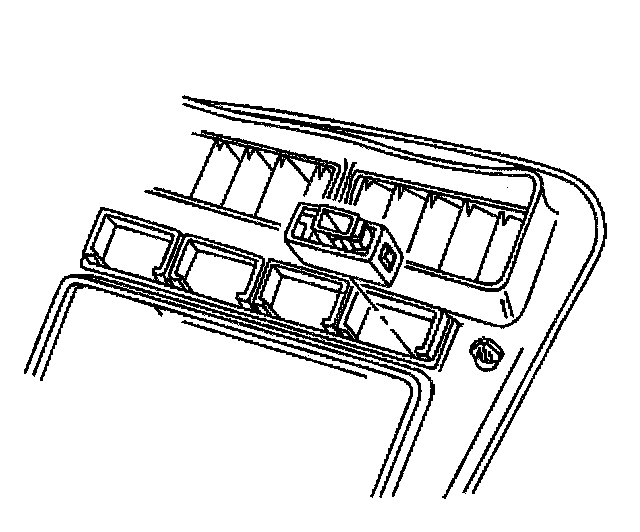

1. Install the rear tog lamp switch located in position 3, it equipped.
2. Install the second gear start, rear tog lamp, or traction control switch located in position 2, if equipped.




3. Install the fog lamp or second gear start switch located in position 1, it equipped.




4. Install the electrical connectors (1) to the switches (3), if equipped.
5. Snap the IP accessory trim plate (2) to the IP.
