Blower Motor Inoperative at Any Speed

TEST DESCRIPTION

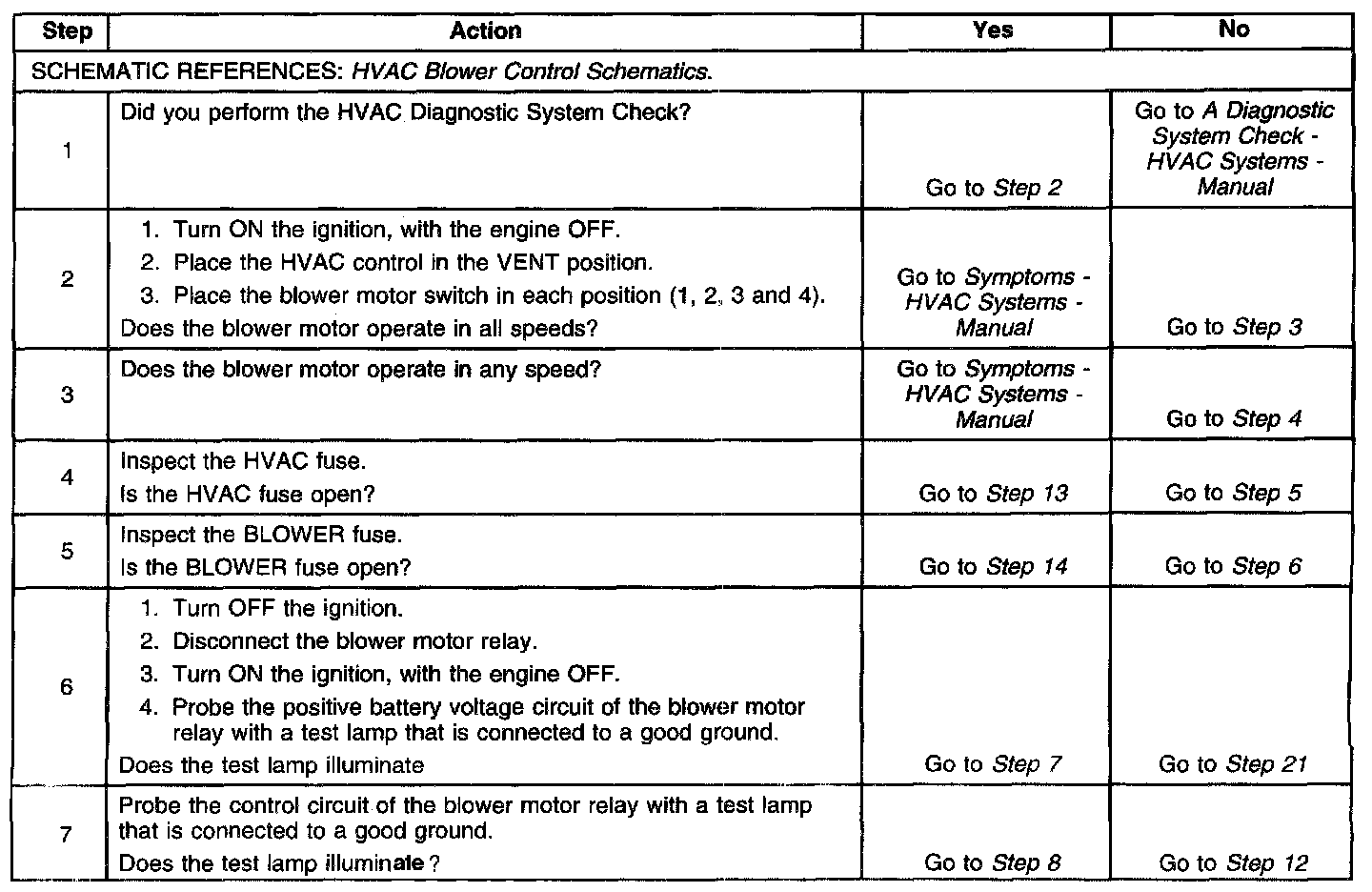

Steps 1-7:

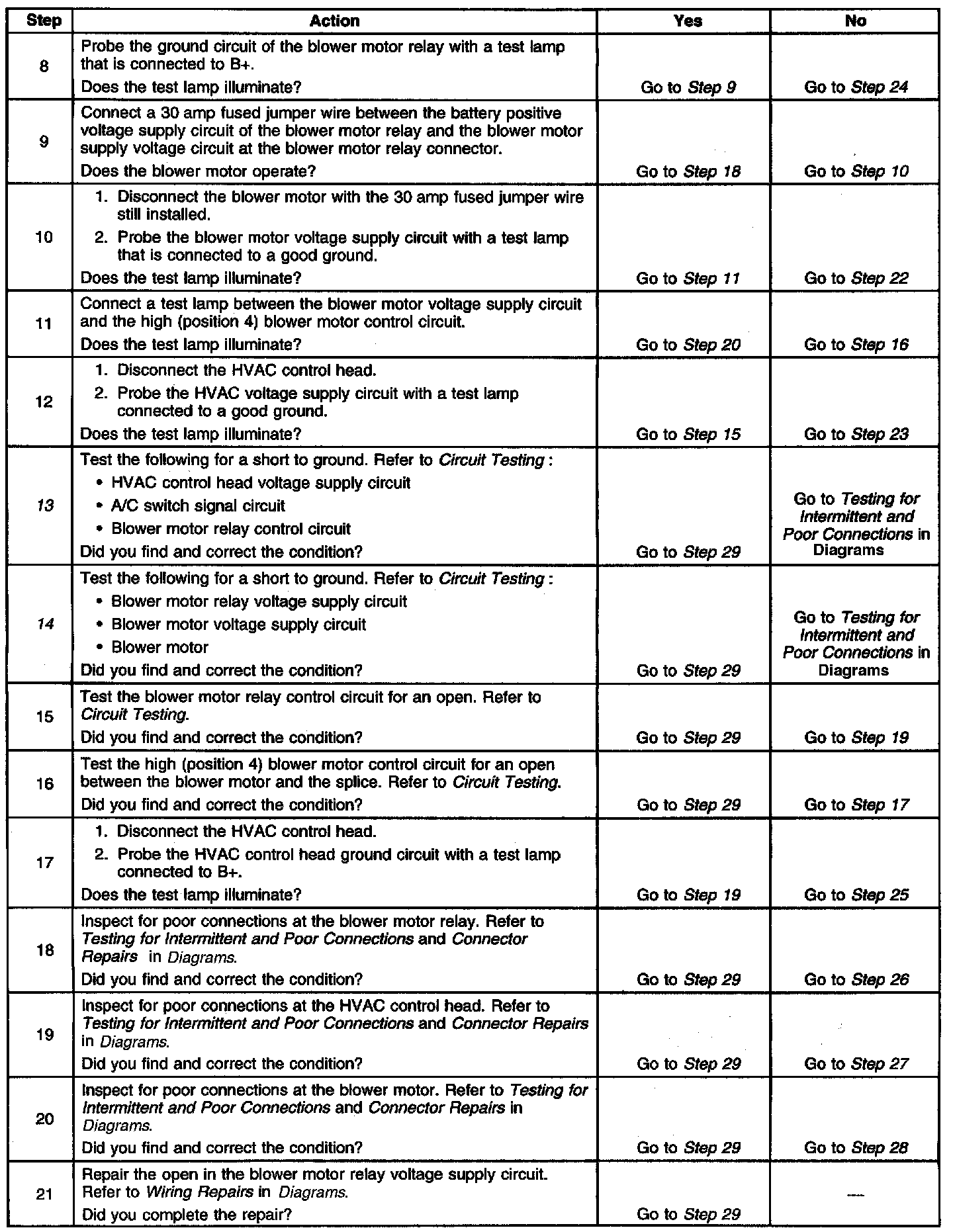

Steps 8-21:

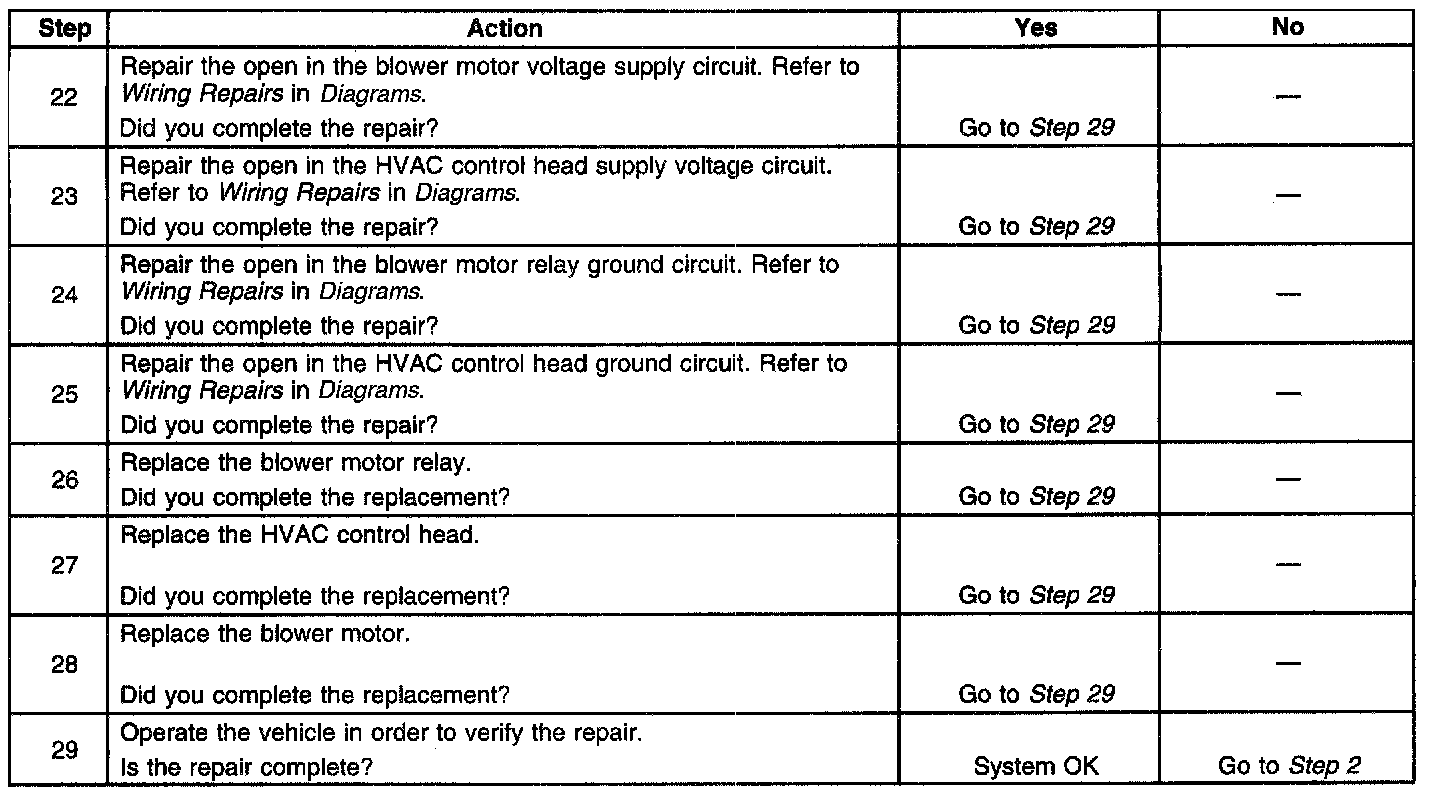

Steps 22-29:

The number(s) below refer to the step number(s) on the diagnostic table.
13. Replace the fuse and verify proper operation if you are unable to locate the short to ground.
14. Replace the fuse and verify proper operation if you are unable to locate the short to ground.
