Instrument Panel (IP) - Dimmer Switch Replacement

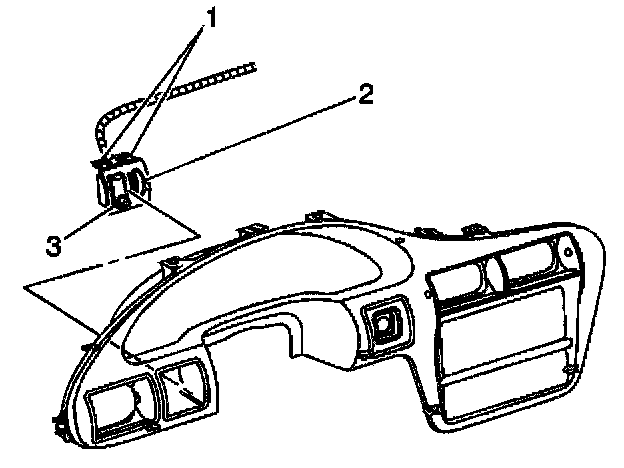

Location View:

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to Disabling the SIR System
2. Remove the trim pad.
3. Remove instrument panel trim plate.
4. Disconnect the electrical connectors.
5. Press tabs (1) to remove switch (2) from bezel.

INSTALLATION PROCEDURE
1. Install the switch (2) to the bezel.
2. Connect the electrical connectors.
3. Install the trim plate.
4. Install the trim pad.
5. Enable the SIR system. Refer to Enabling the SIR System
