Instrument Panel Cluster (IPC) - Replacement

Instrument Cluster Replacement (Chevrolet)

Removal Procedure






Caution: Refer to SIR Caution in Service Precautions.

1. Disable the SIR system. Refer to Disabling the SIR System in Restraint Systems.
2. Remove the instrument panel trim plate.

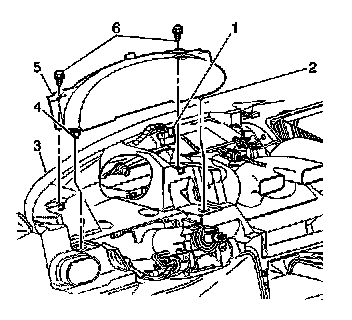

3. Remove the screws (6) from the top of the cluster (5).
4. Pull the cluster (5) rearward.
5. Disconnect the electrical connector (1).
6. Remove the cluster (5).

Installation Procedure

1. Connect the electrical connector (1).




2. Install the cluster (5) to the instrument panel (3).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the screws (6) at the top of the cluster (5).

Tighten the screws to 2 N.m (18 lb in).

4. Install the instrument panel trim plate.
5. Enable the SIR system. Refer to Enabling the SIR System in Restraint Systems.
