Fog Lamp Replacement - Front

REMOVAL PROCEDURE
1. Disconnect the connector from the fog lamp assembly.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions

2. Remove the fog lamp bulb from the fog lamp assembly.
Twist and pull outward on the bulb.
3. Remove the fog lamp assembly bolts (3).

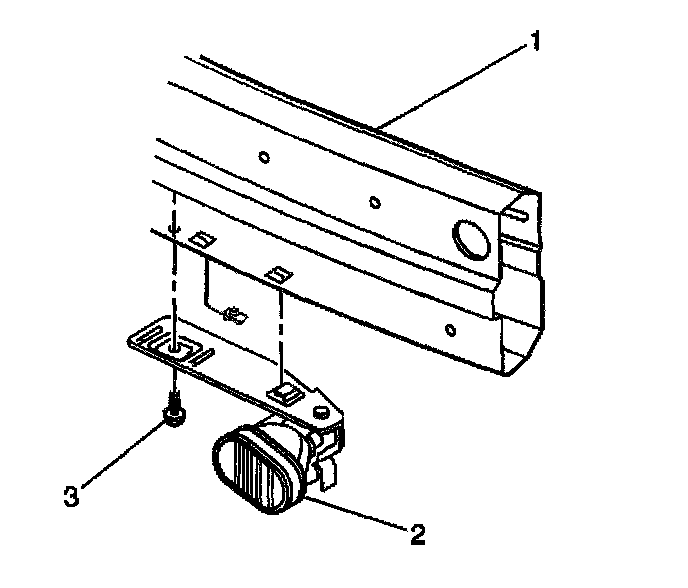

4. Remove the fog lamp assembly (2) from the fog lamp impact bar (1).

INSTALLATION PROCEDURE
1. Install the fog lamp assembly (2) to the fog lamp impact bar (1).

NOTE: Refer to Fastener Notices in Service Precautions.

2. Install the fog lamp assembly bolts (3) in order to secure the fog lamp bracket to the fog lamp impact bar (1).

Tighten
Tighten the fog lamp assembly bolts to 6 N.m (53 lb in).

3. Install the fog lamp bulb to the fog lamp assembly (2)
Ensure the unit is retained.
4. Connect the fog lamp connector to the foglamp assembly.
