Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 2000 >> Cavalier L4-144 2.4L DOHC VIN T SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Tools and Equipment

Axle Shaft Assembly: Tools and Equipment

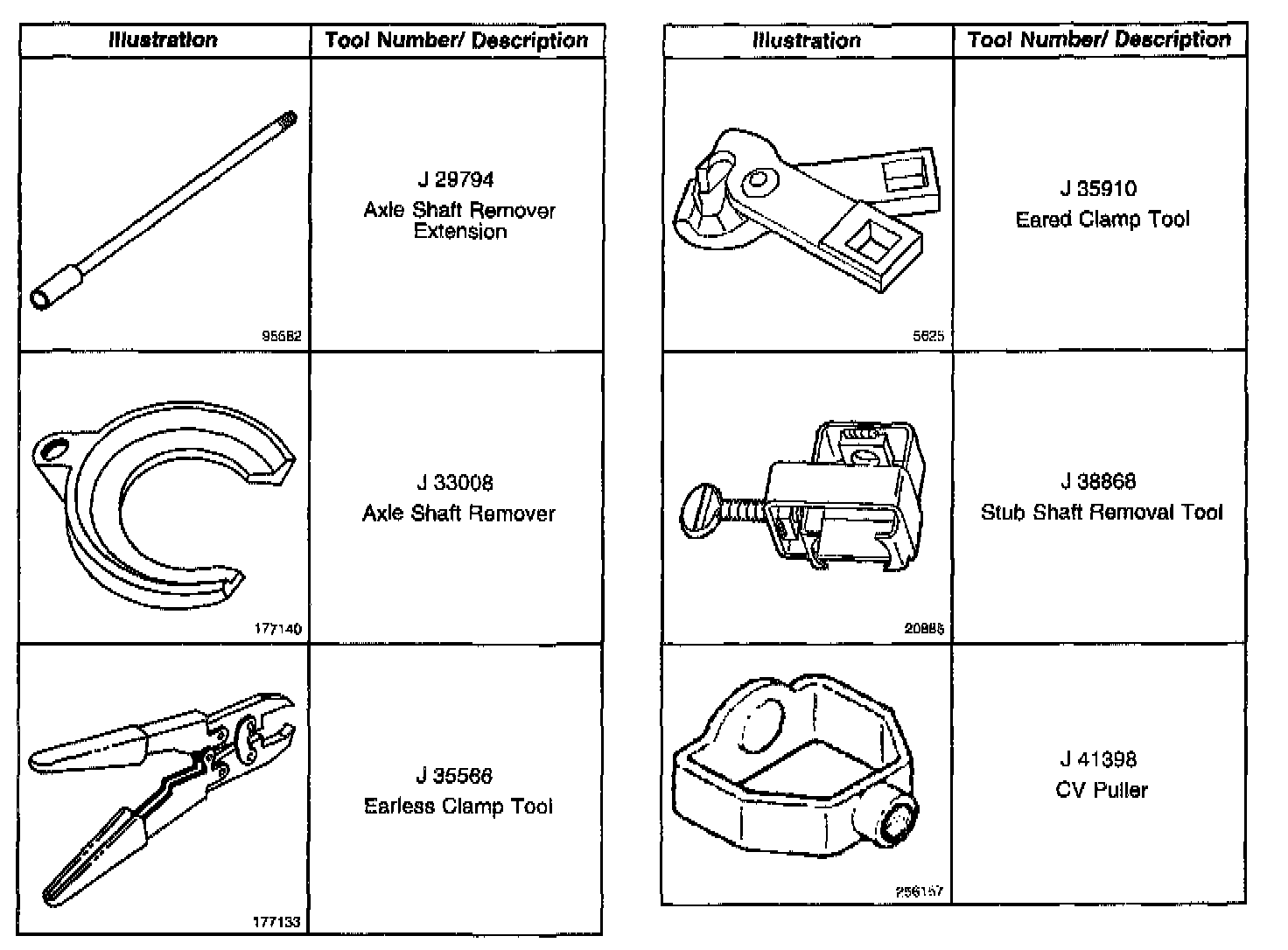

Part 1 of 2





Part 2 of 2
