Enabling the Park Brake Automatic Adjuster

1. Raise the vehicle and support. Refer to Vehicle Lifting.
2. Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
3. Install the park brake cable to the park brake actuator, at both wheels.
4. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
5. Lower the vehicle.





6. Reposition the carpet away from the parking brake lever.

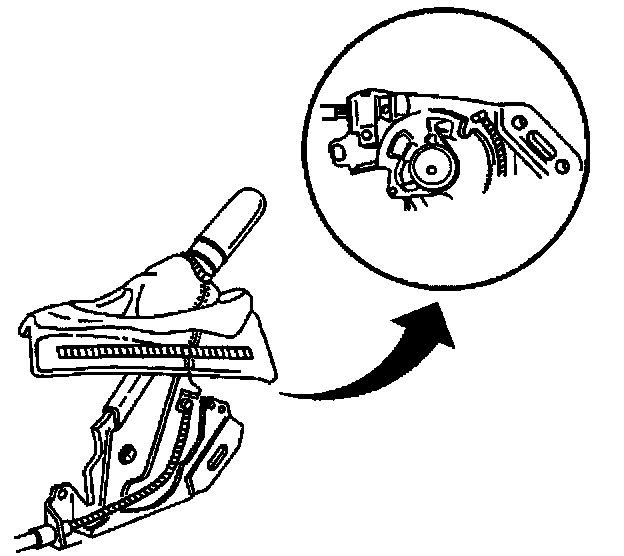

7. Remove any rivet, drill bit, zip tie or cotter key from the park brake lever.
8. Install the park brake cable to the park brake lever.
9. Install the carpet to its original position.
10. Cycle the park brake lever up and down three times for automatic adjustment.
