Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> Inflatable Restraint IP Module LED (PSIR)

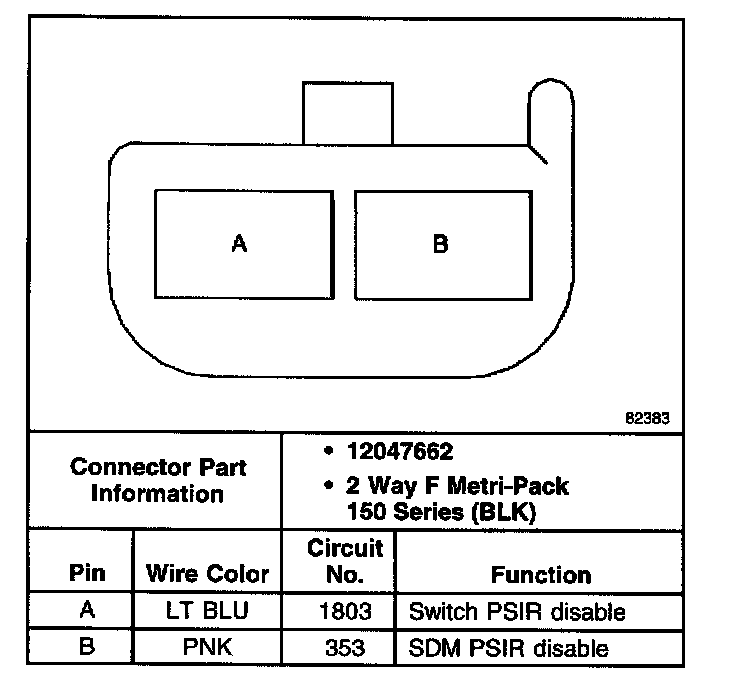

Inflatable Restraint IP Module LED (PSIR)

Inflatable Restraint IP Module LED (PSIR):
