Backup Lamp
>>
RR Backup Lamp (Domestic/Japan)
RR Backup Lamp (Domestic/Japan)

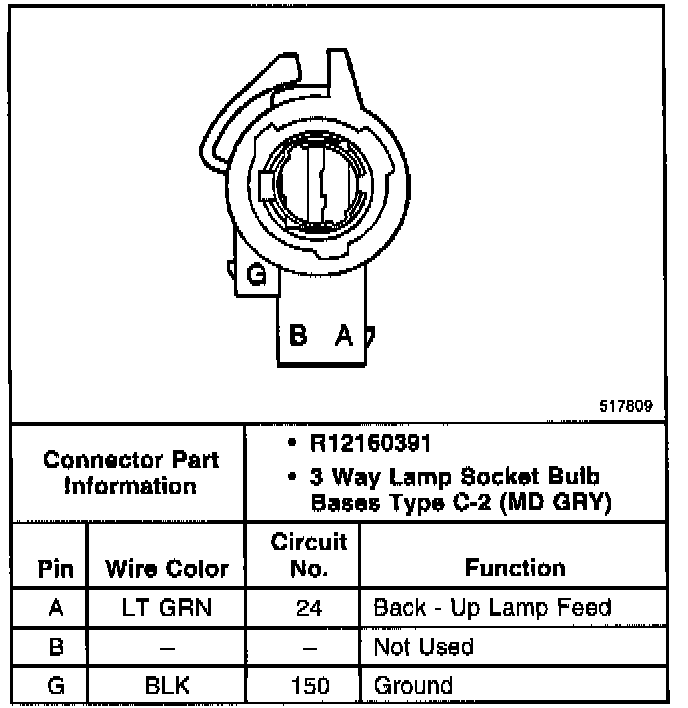

RR Backup Lamp (Domestic/Japan):
