Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Pressure Sensor/Switch
>>

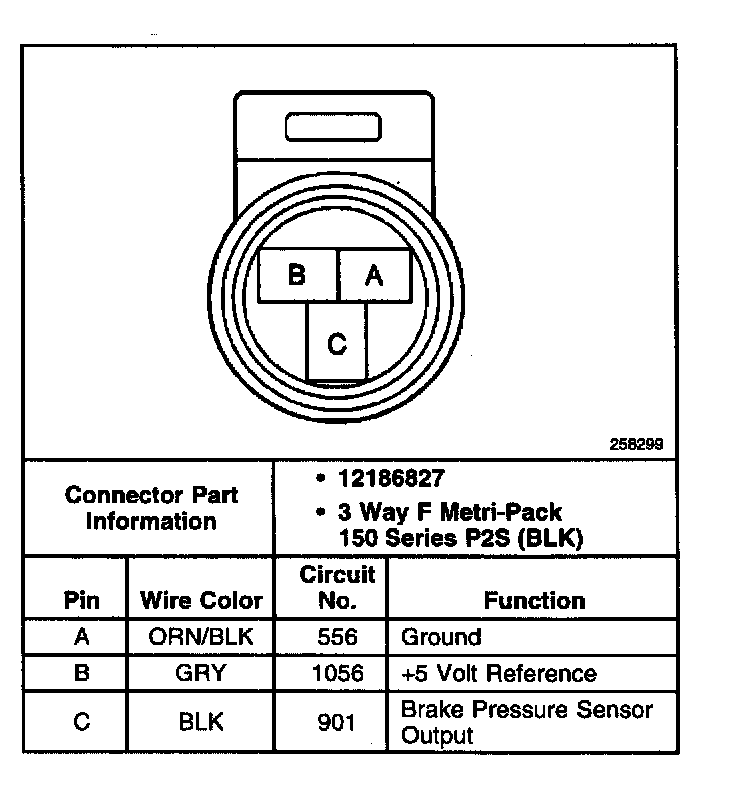

Brake Pressure Sensor (JL4)
Brake Pressure Sensor (JL4)
