Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> RF Fog Lamp (Domestic)

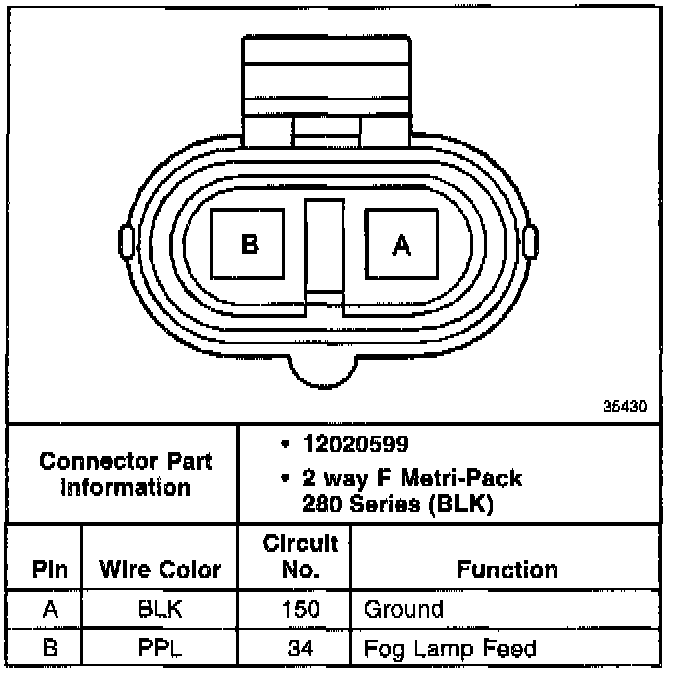

RF Fog Lamp (Domestic)

RF Fog Lamp (Domestic):
