Tail Lamp
>>
RR Tail/Stop/Turn Signal Lamp (Domestic)
RR Tail/Stop/Turn Signal Lamp (Domestic)

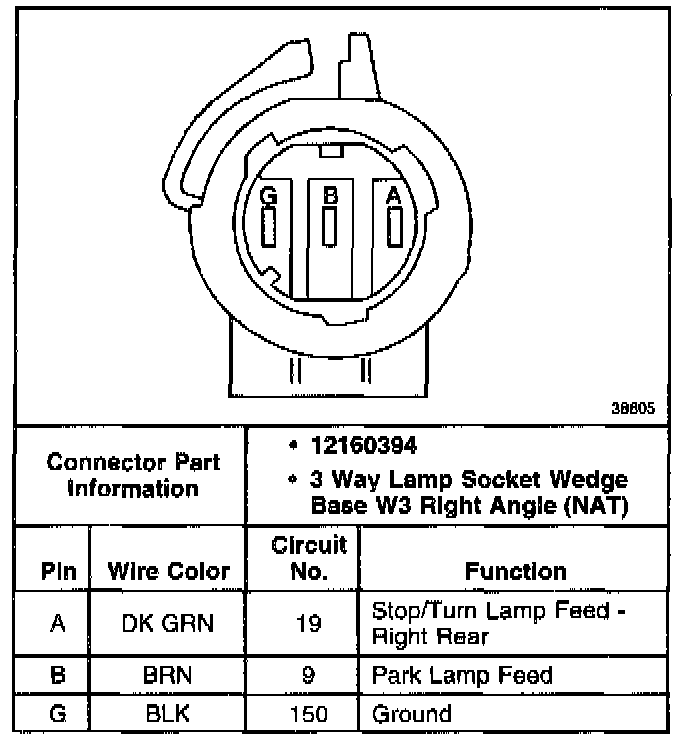

RR Tail/Stop/Turn Signal Lamp (Domestic):
