Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Latch >> Rear Compartment Lid Latch C2 (Hardtop and Convertable)

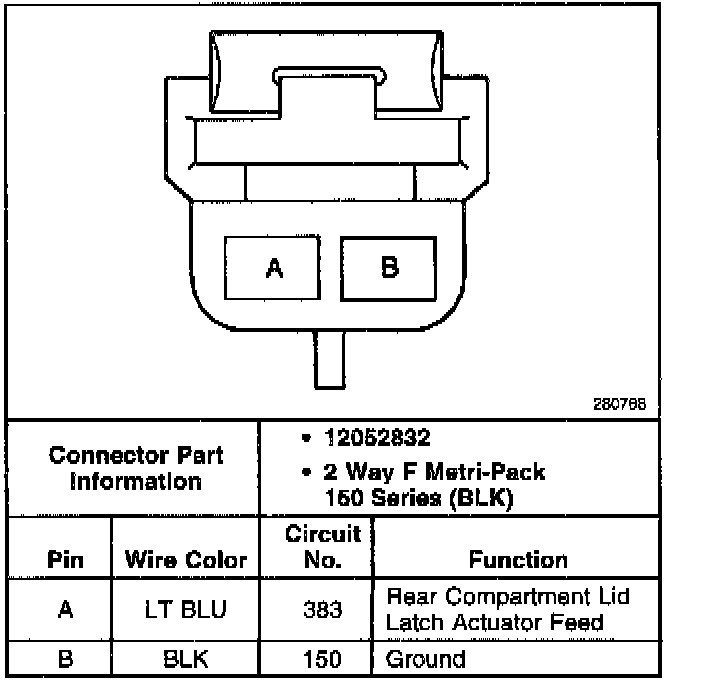

Rear Compartment Lid Latch C2 (Hardtop and Convertable)

Rear Compartment Lid Latch C1 (Hardtop And Convertable):
