Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
With PSIR
With PSIR

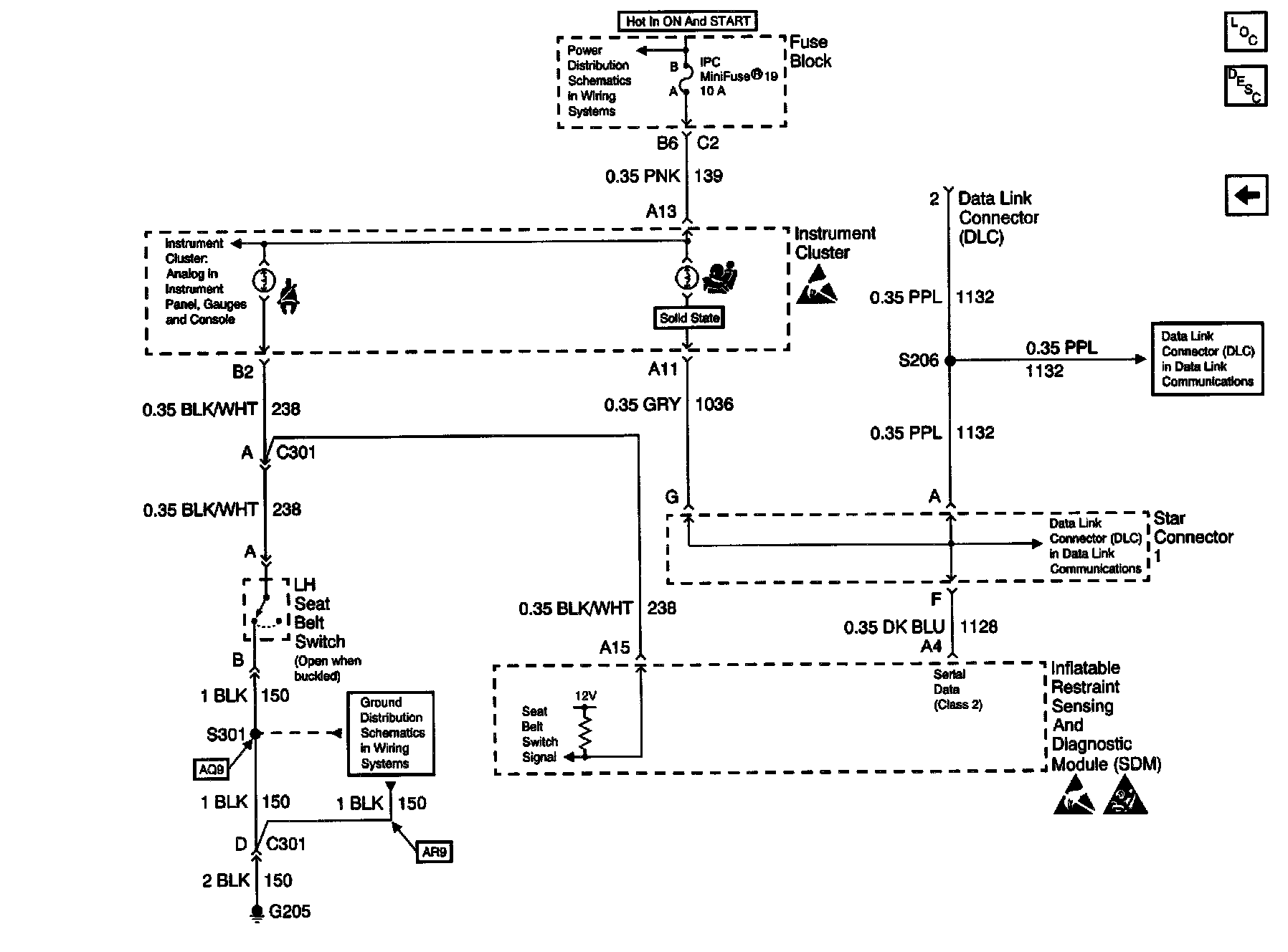

SIR Schematics (With PSIR) (Part 1 Of 2):

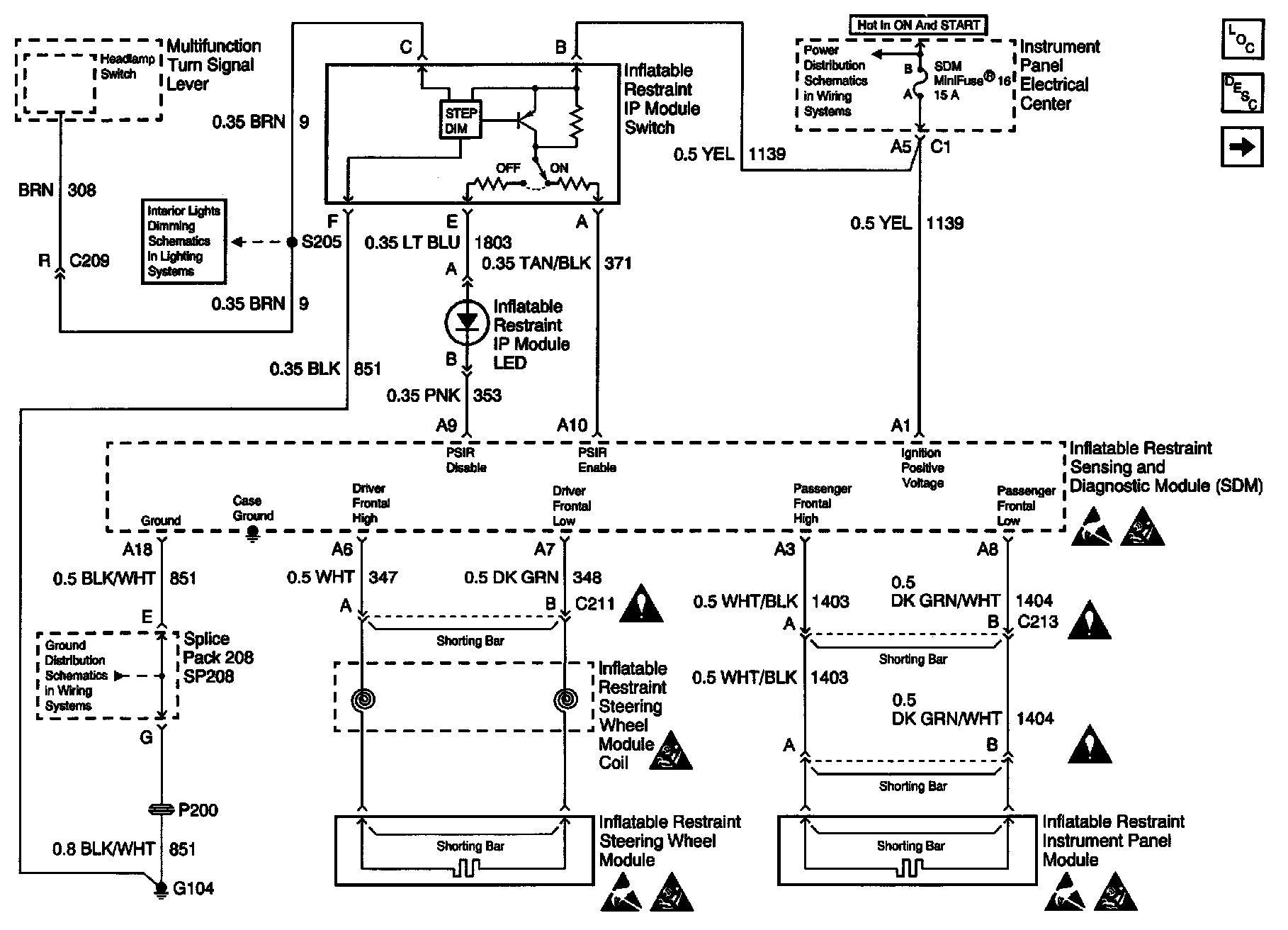

SIR Schematics (With PSIR) (Part 2 Of 2):
