Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Without PSIR
Without PSIR

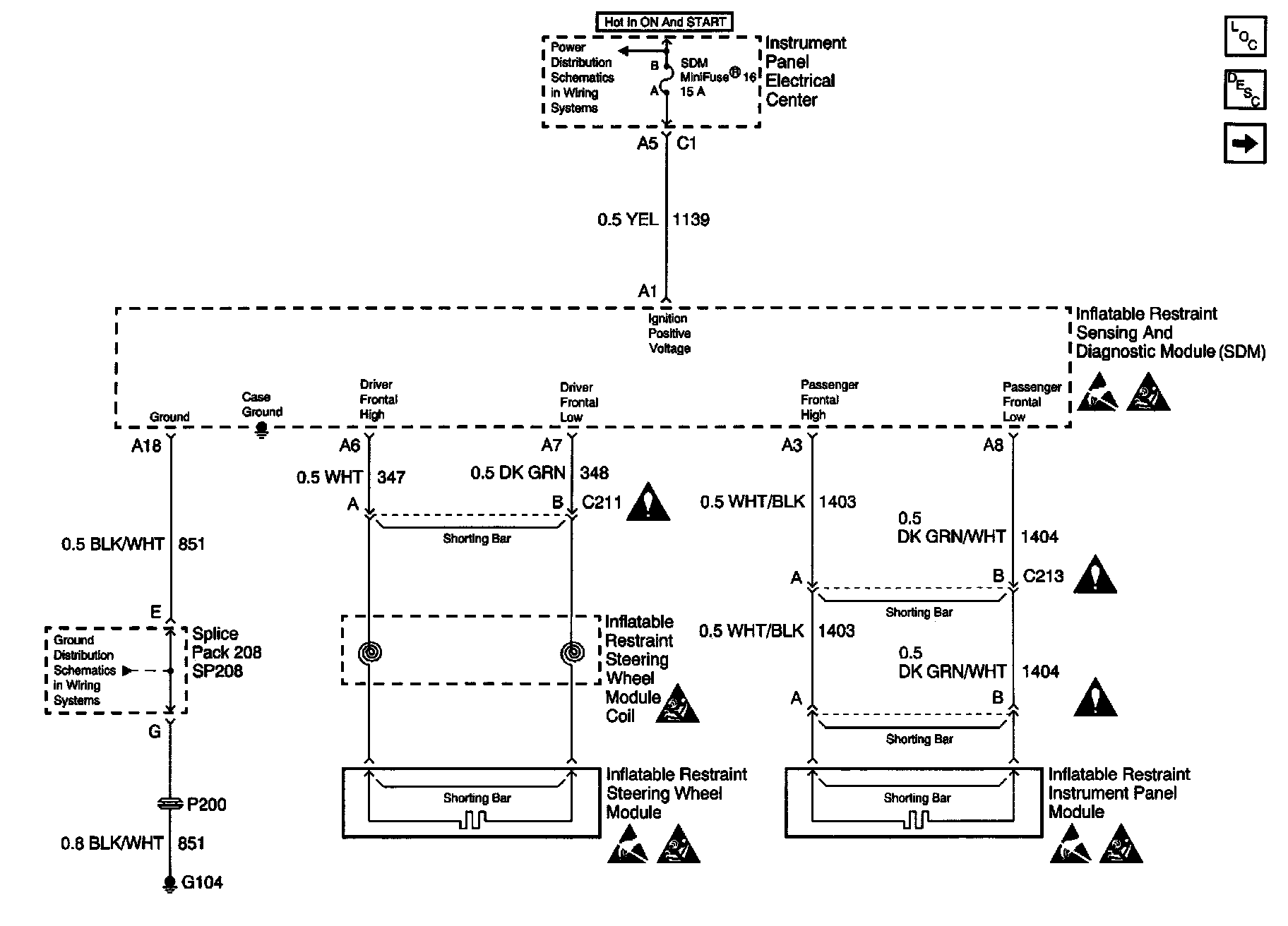

SIR Schematics (Without PSIR) (Part 1 Of 2):

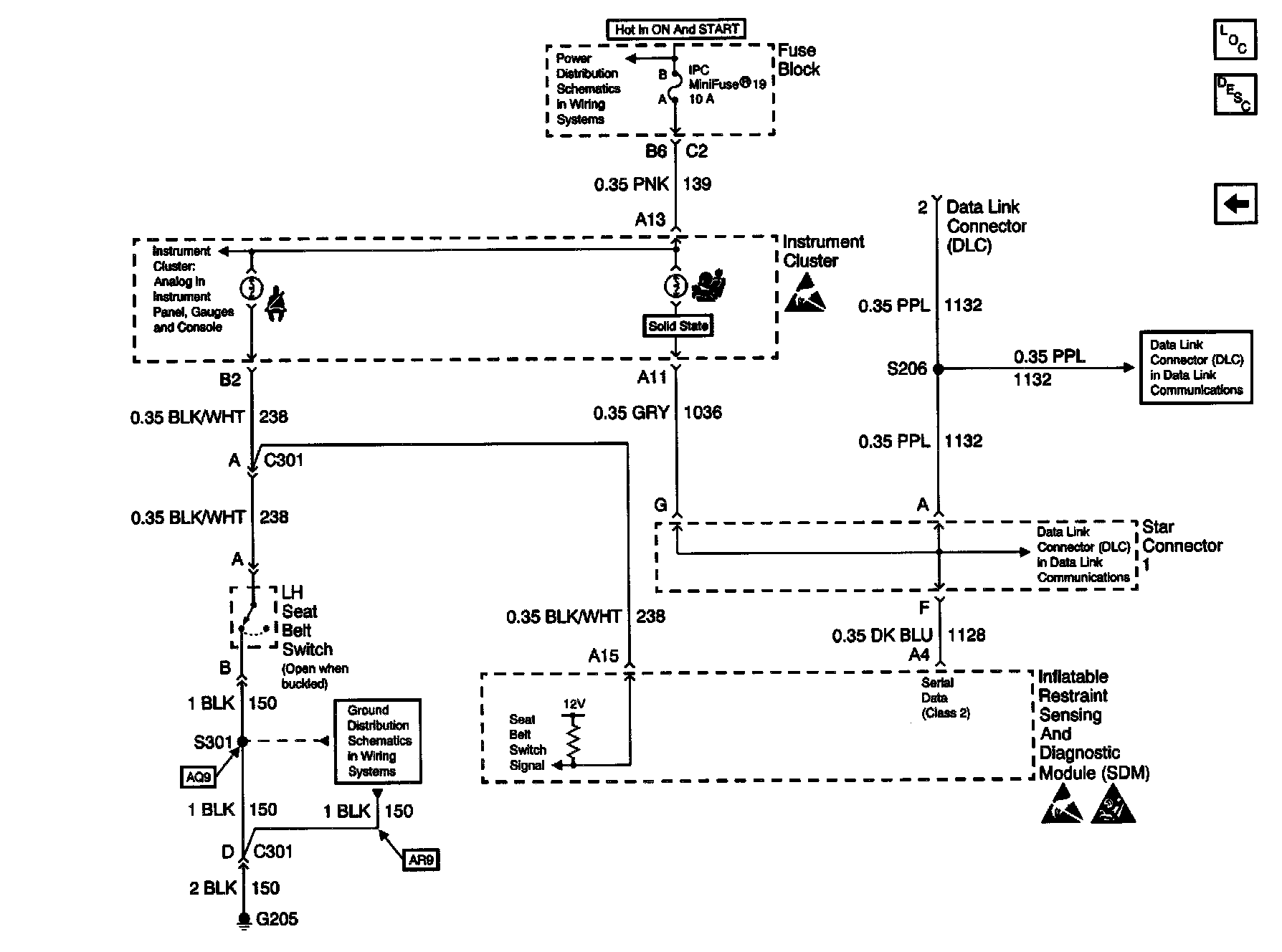

SIR Schematics (Without PSIR) (Part 2 Of 2):
