Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Torque Converter Clutch Solenoid, A/T >> TCC PWM Solenoid Circuit

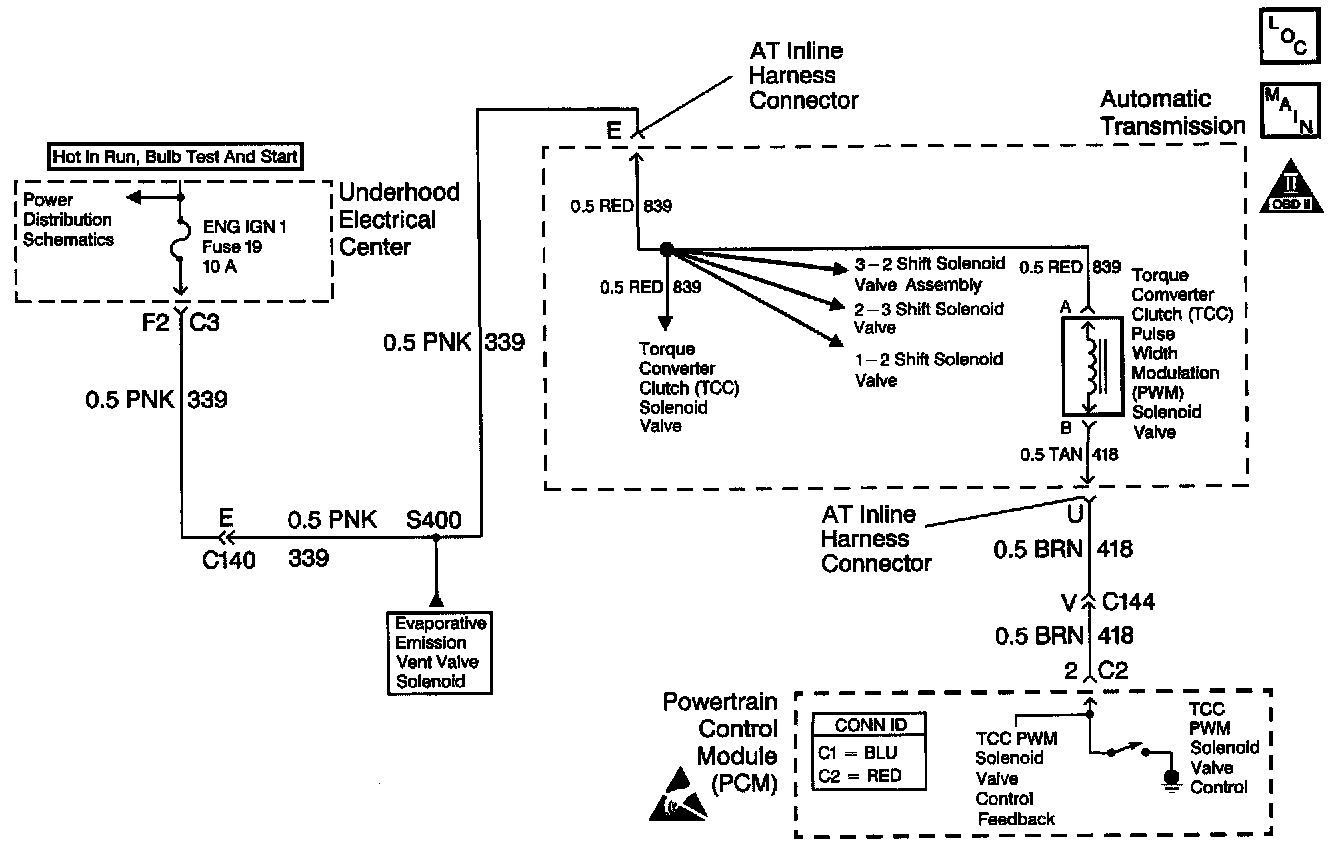

TCC PWM Solenoid Circuit

Schematic:
