Torque Converter Clutch, A/T

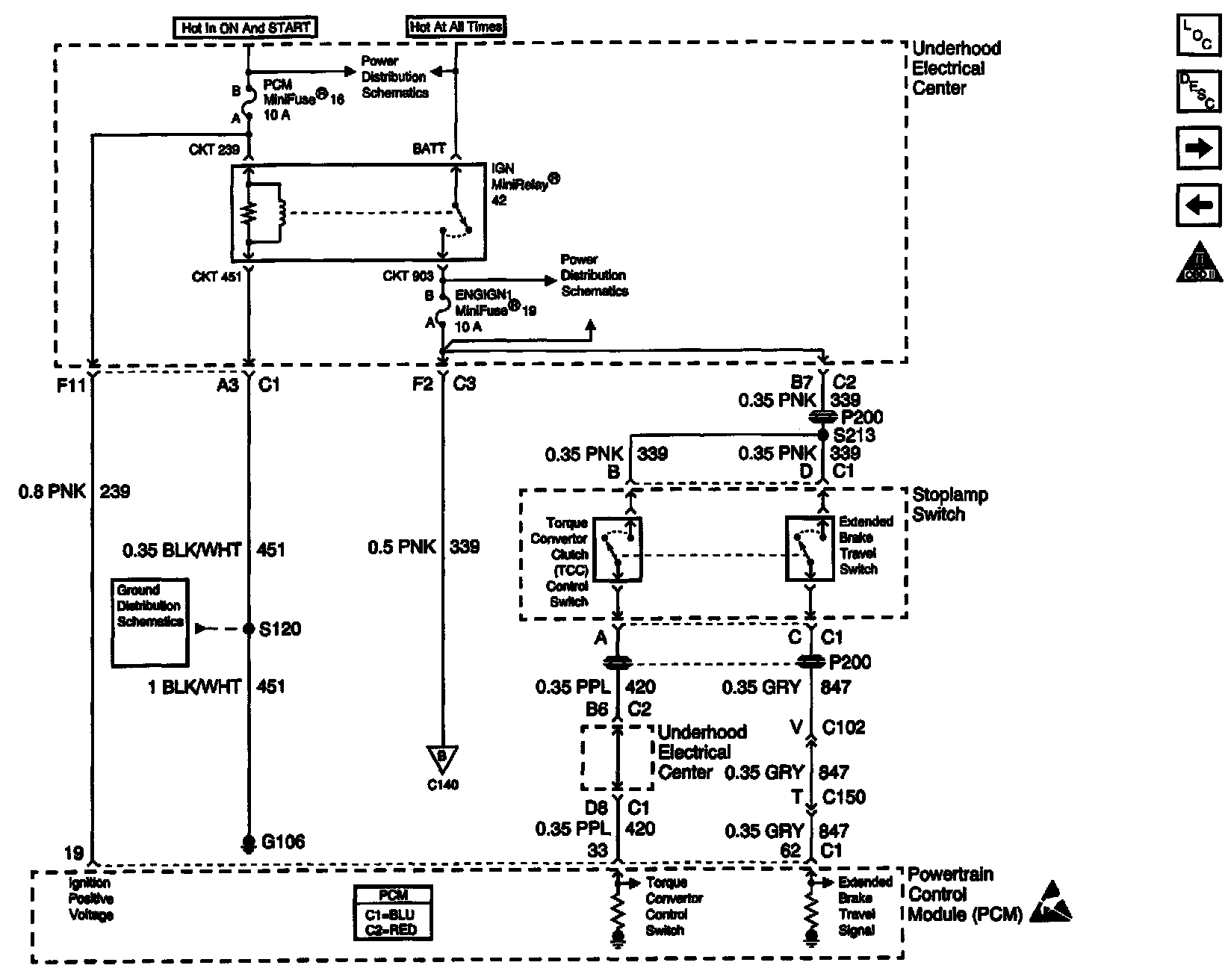

Engine Controls Schematics: TCC Switch And Extended Brake Travel Switch:
