Radio, Stereo, and Compact Disc
>>
Power Antenna Schematics
>>
Power Antenna
Power Antenna

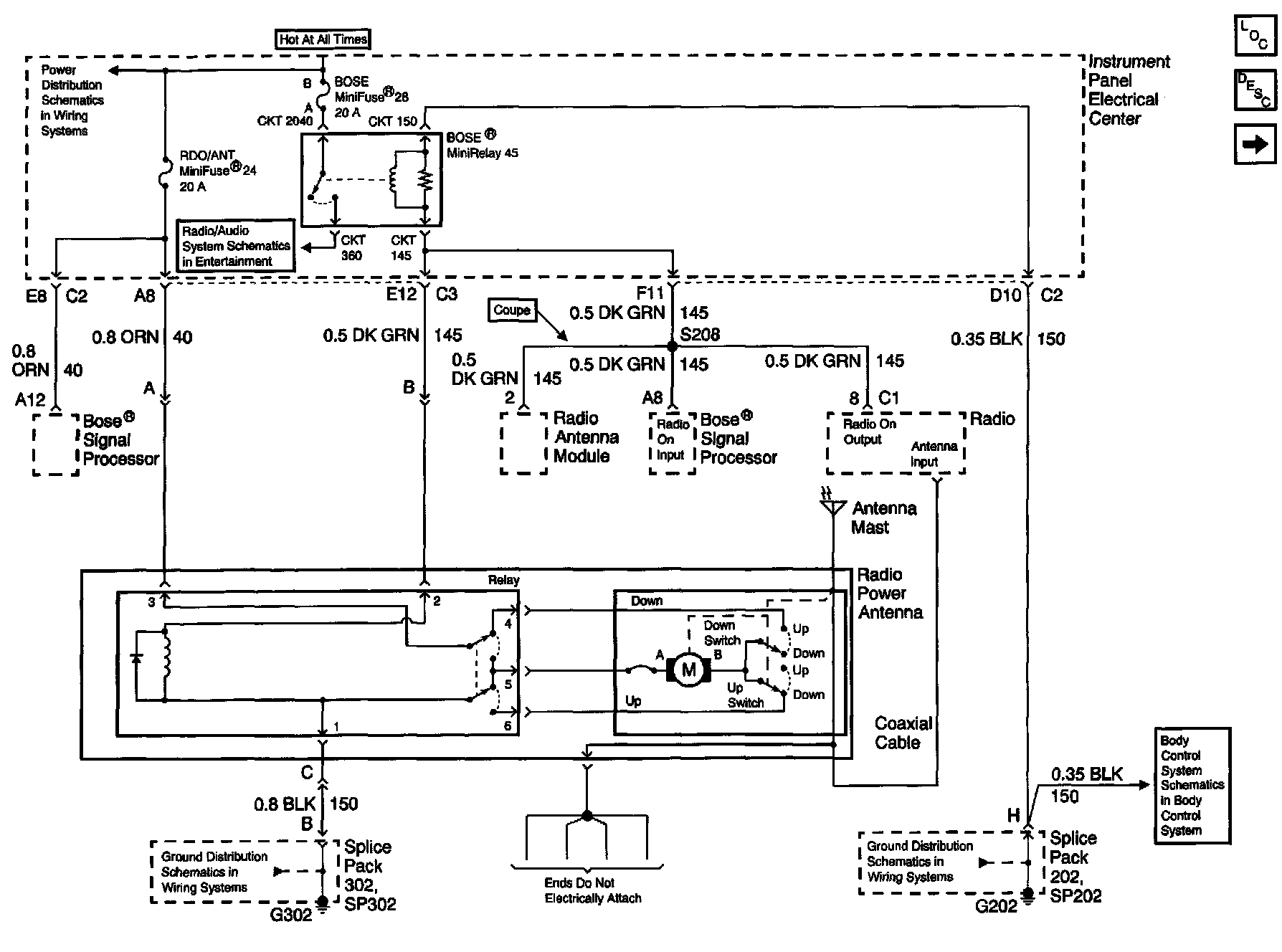

Power Antenna Schematics: Power Antenna:
