Trunk / Liftgate
>>
Power, Ground and DLC
Power, Ground and DLC

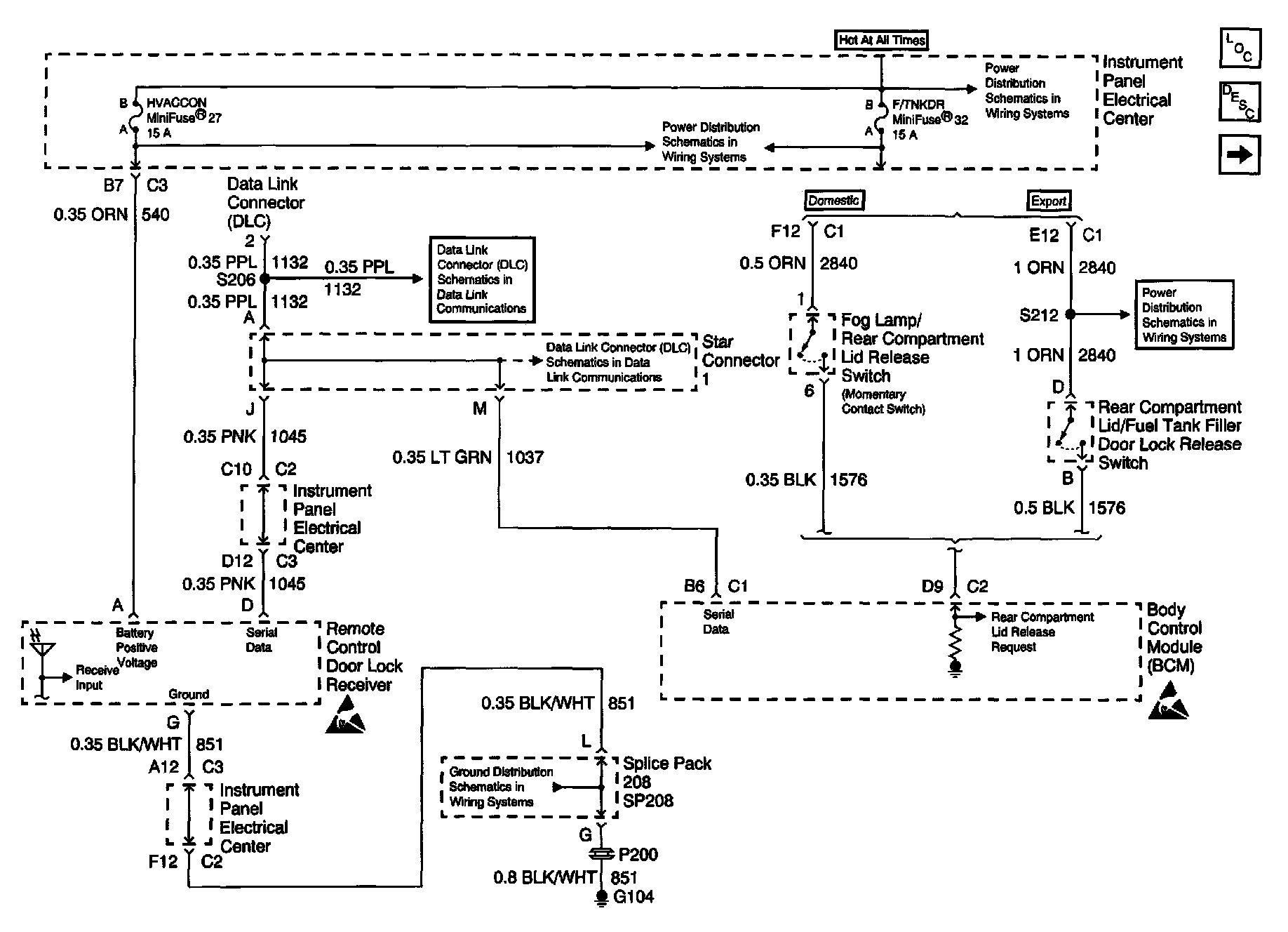

Release Systematics: Power, Ground And DLC:
