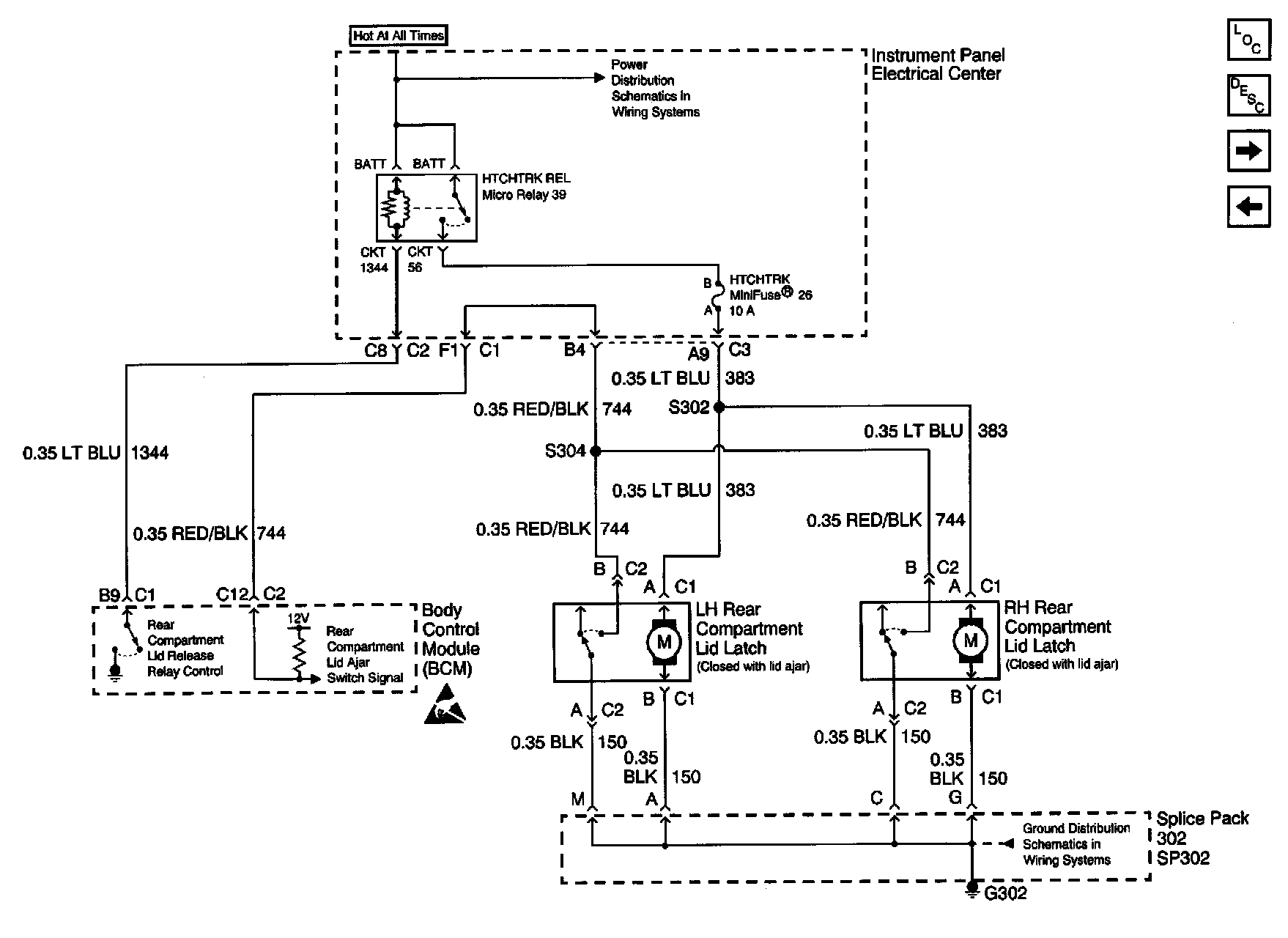

Rear Compartment Lid Release (Coupe)

Release Systems Schematics: Rear Compartment Lid Release (Coupe):
