Engine

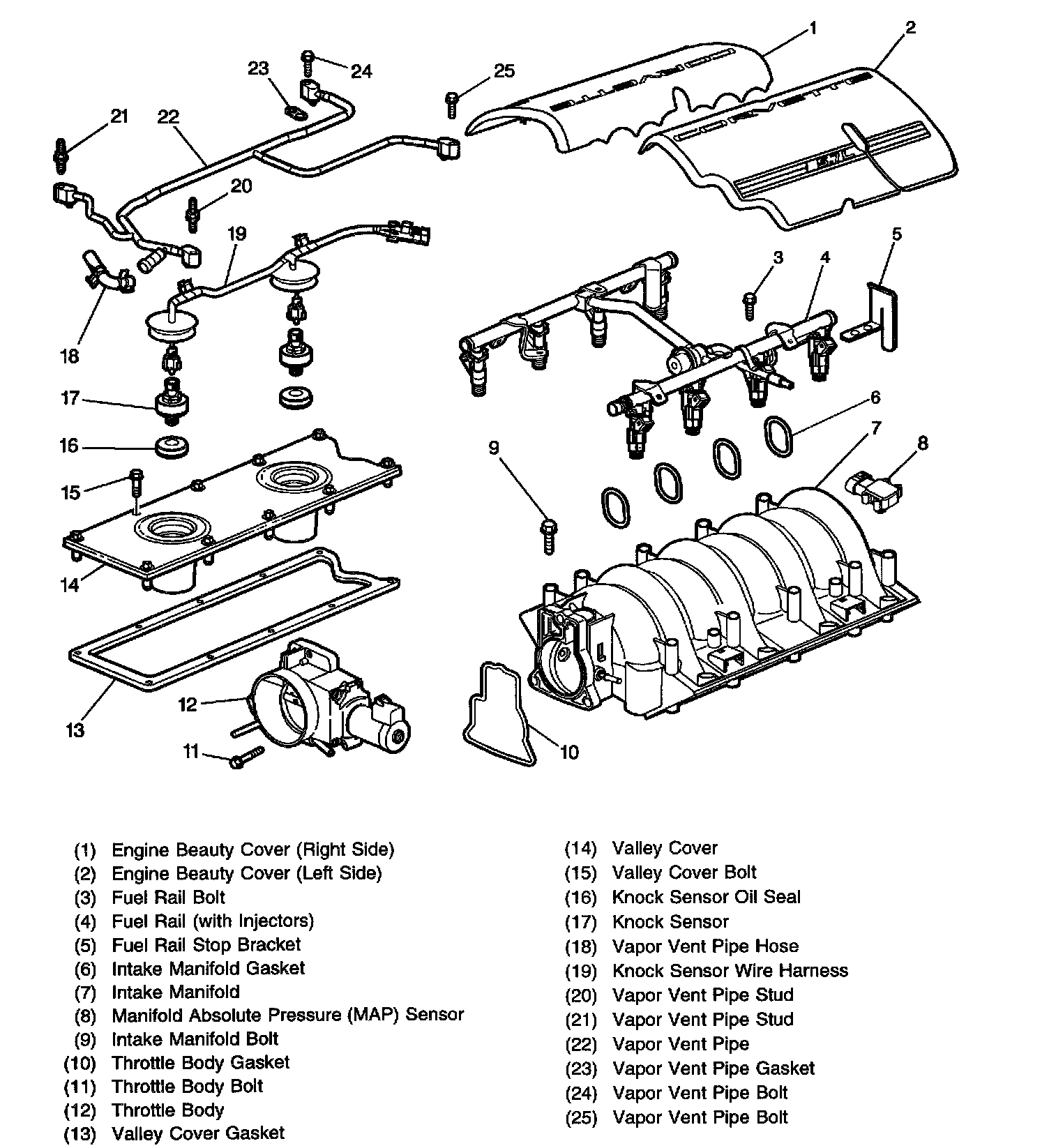

Intake Manifold/Upper Engine

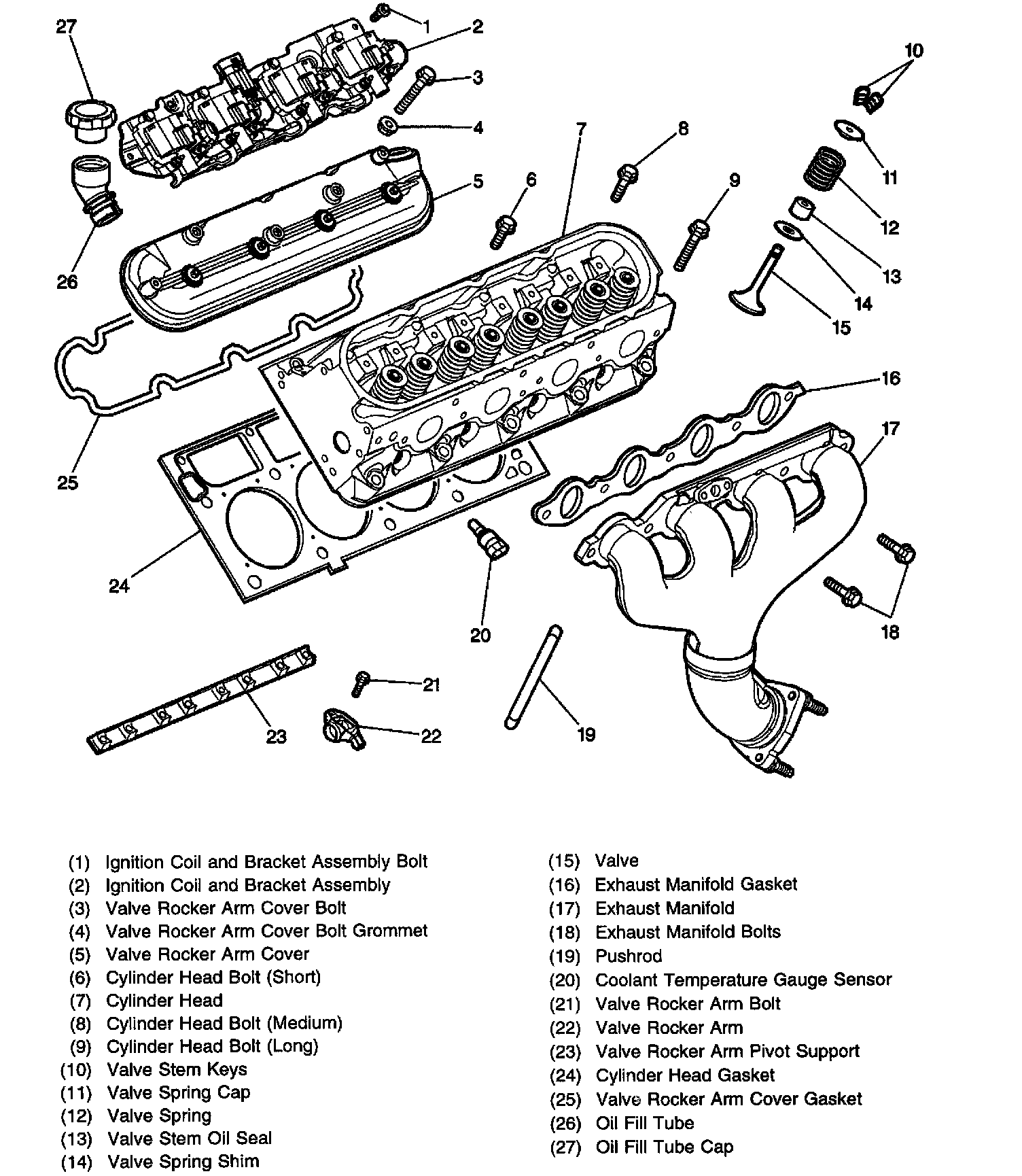

Cylinder Head/Upper Engine






Lower Front Of Engine

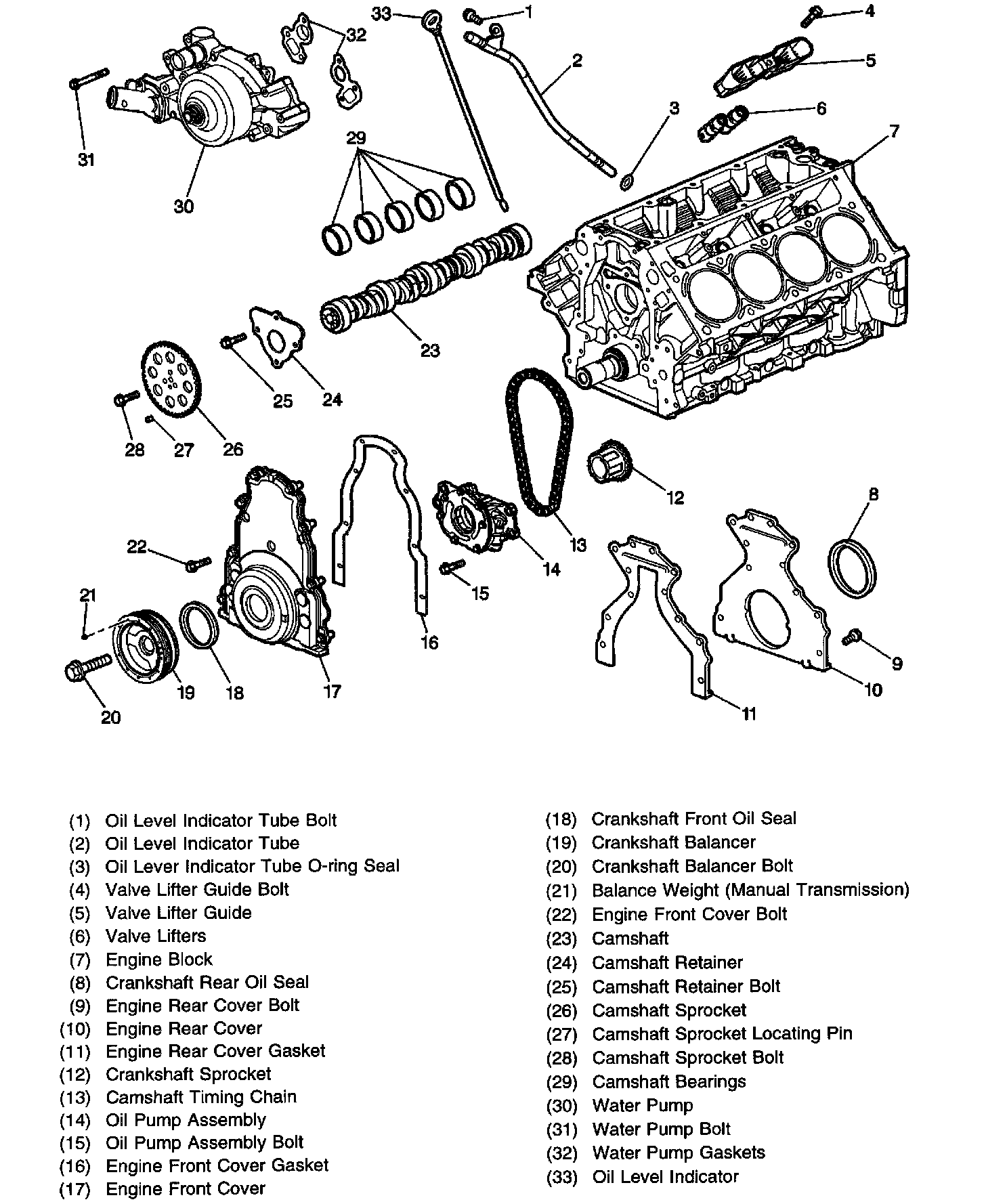

Lower Engine Assembly






Cylinder Head Assembly (Aluminum)

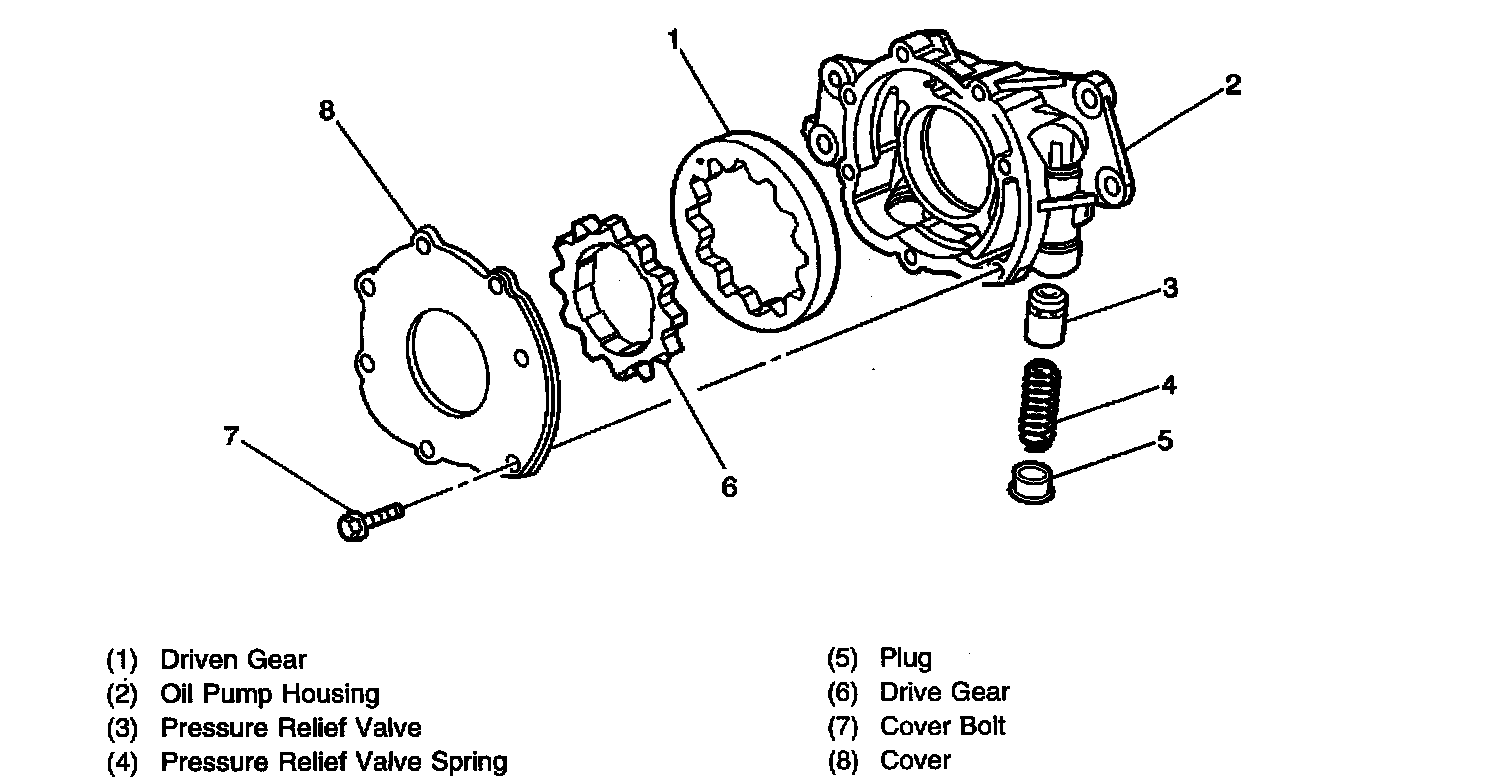

Oil Pump Assembly
