Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Steering Column - Tilt - Non-Telescoping Without Sensor

Steering Column - Tilt - Non-Telescoping Without Sensor

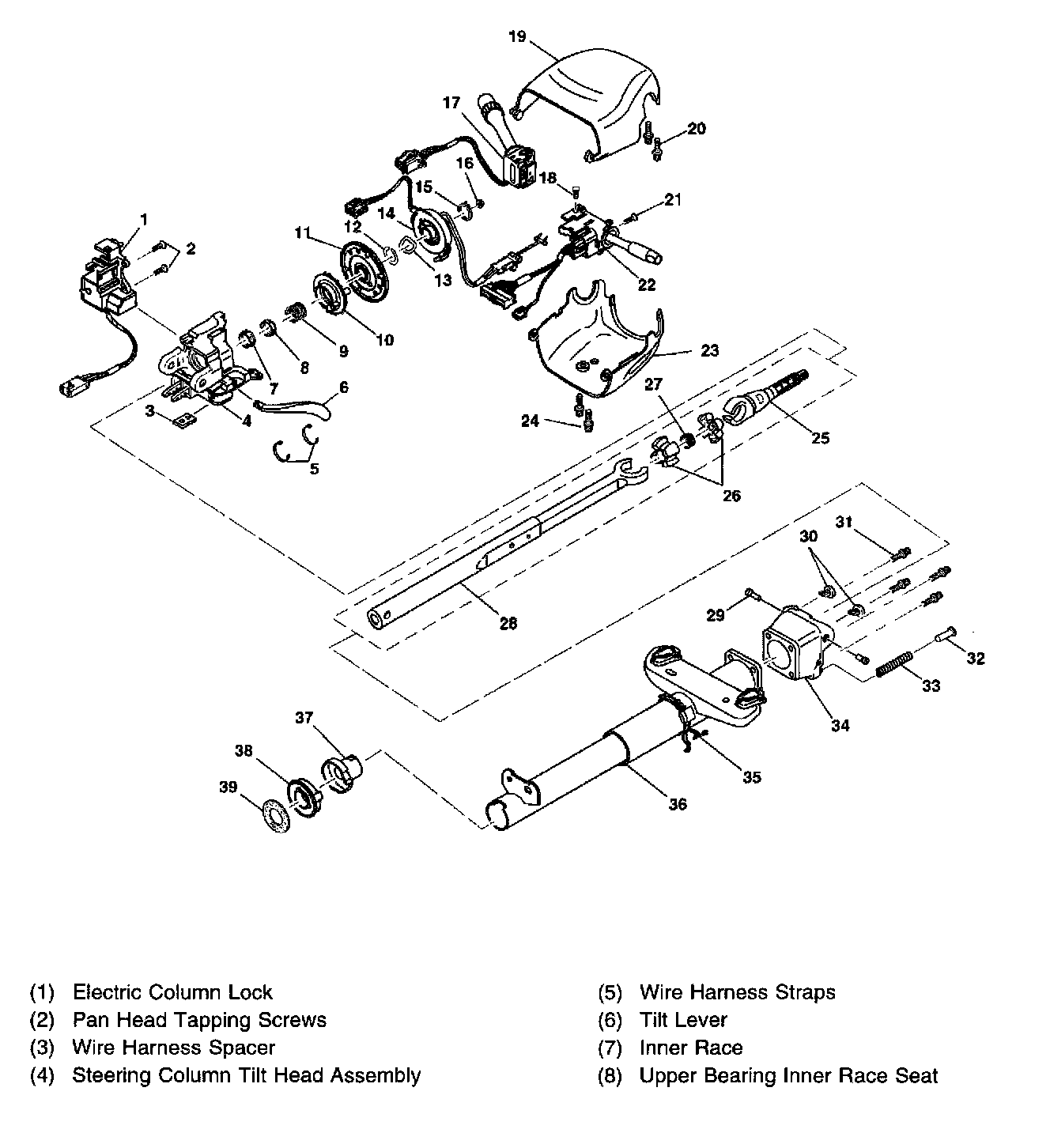

Steering Column - Disassembled View (Non-Telescoping Without Sensor) Tilt Steering Column
