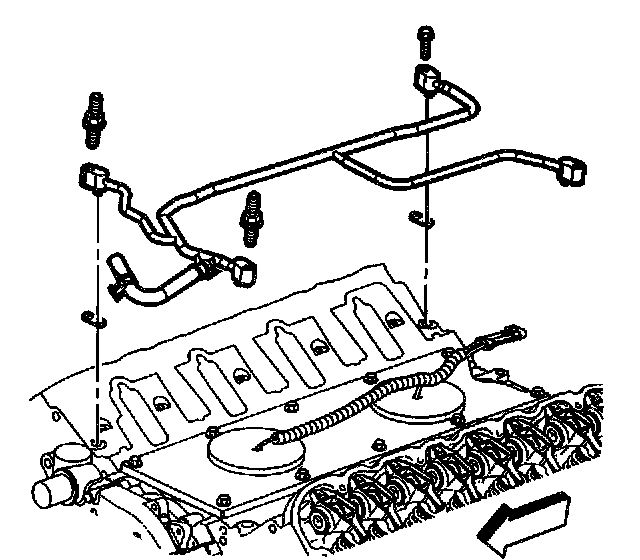

Coolant Air Bleed Pipe Assembly Replacement

Removal Procedure





1. Remove the intake manifold. Refer to Intake Manifold Replacement.
2. Remove the coolant air bleed pipe. Refer to Vapor Vent Pipe Removal.

Installation Procedure





1. Install the coolant air bleed pipe. Refer to Vapor Vent Pipe Installation.
2. Install the intake manifold. Refer to Intake Manifold Replacement.
