Compressor HVAC: Locations

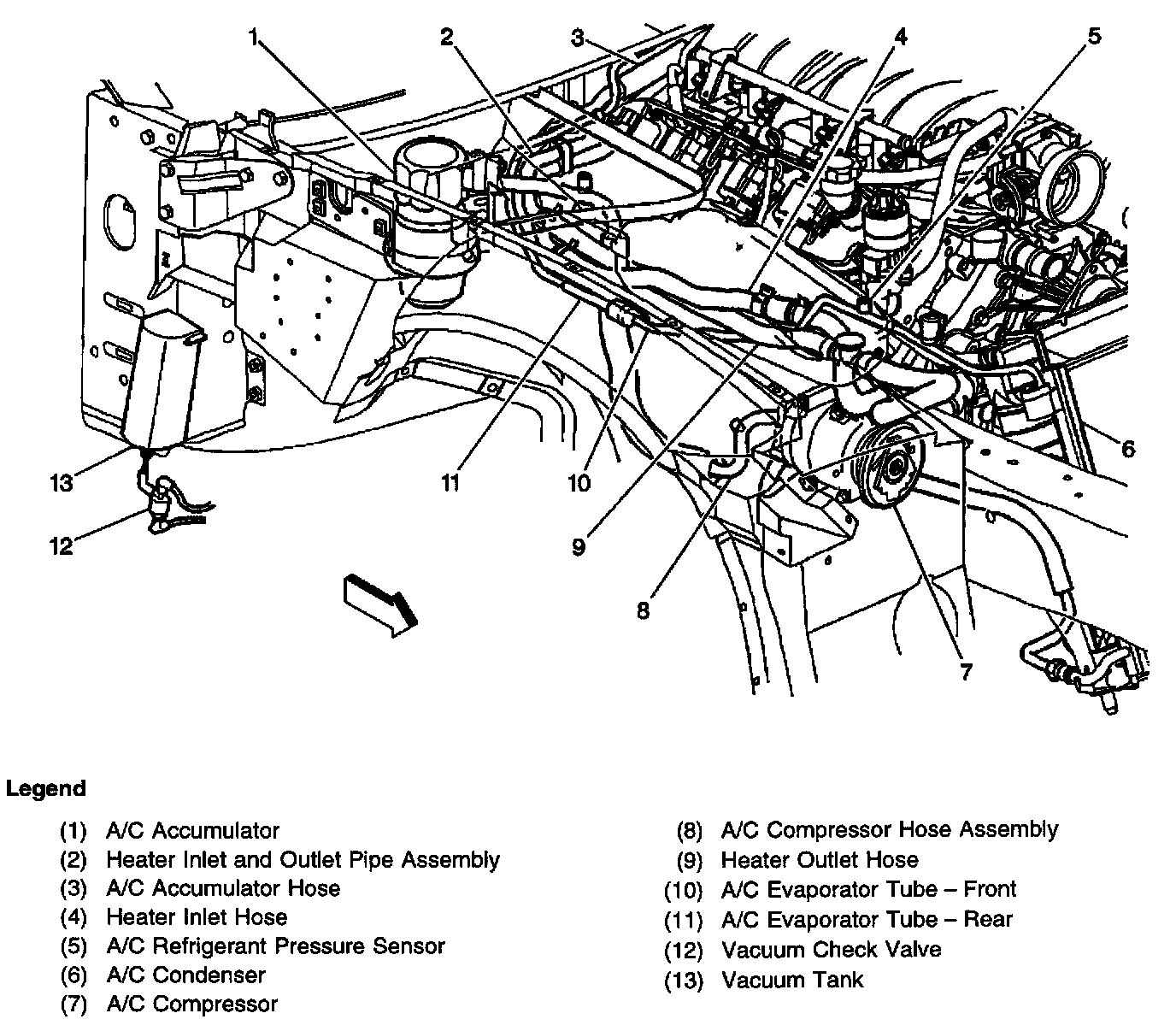

HVAC System Underhood Components:




The heating system consists of the following components:
^ Heater inlet and outlet hoses
^ Heater inlet and outlet pipes
^ Heater core
