Instrument Panel, Gauges and Warning Indicators
>>
Oil Temperature Gauge
>>
Diagrams
Oil Temperature Gauge: Diagrams

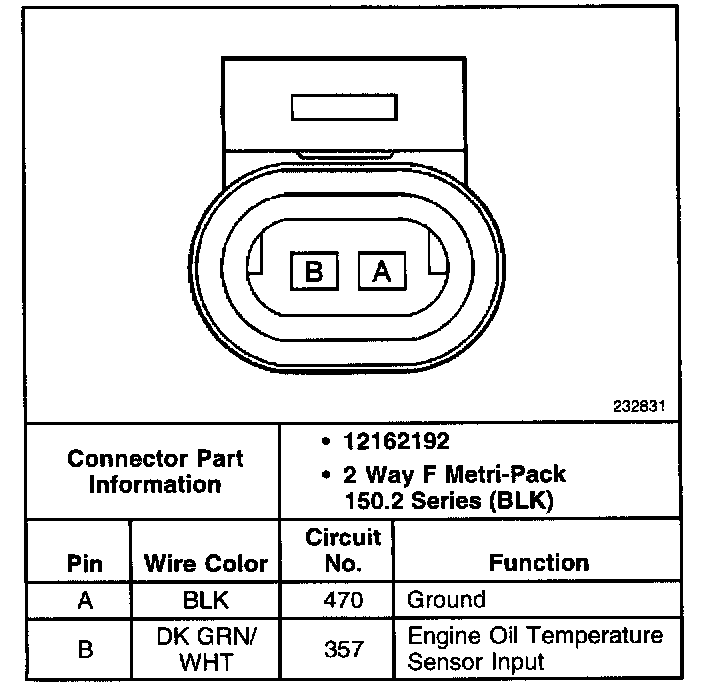

Engine Oil Temperature (EOT) Gauge Sensor:
