Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Lighting and Horns >> Cornering Lamp >> Diagrams

Cornering Lamp: Diagrams

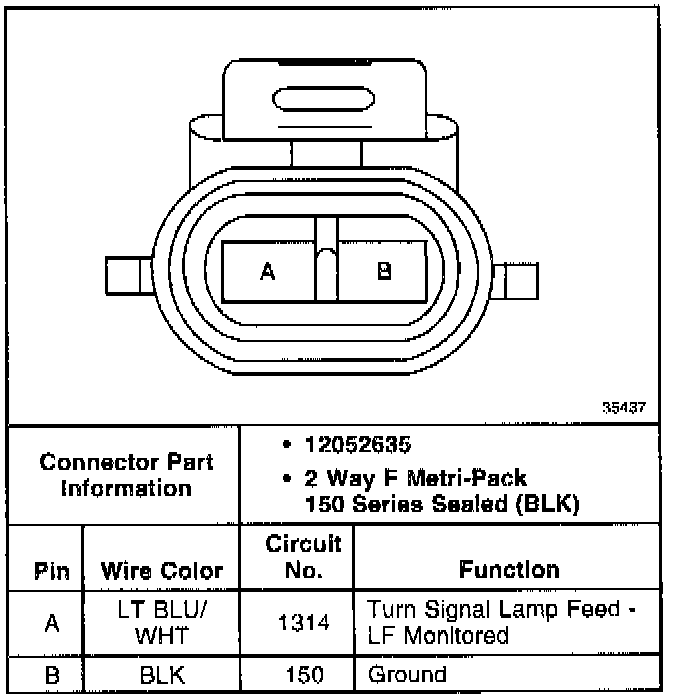

LH Repeater Lamp (Export):
