Fog Lamp Bulb Replacement - Front

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle.
2. Remove the front fascia lower closeout panel.
3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.




4. Disconnect the front fog lamp electrical connector.

CAUTION: Refer to Halogen Bulb Caution Halogen Bulb Caution in Service Precautions.

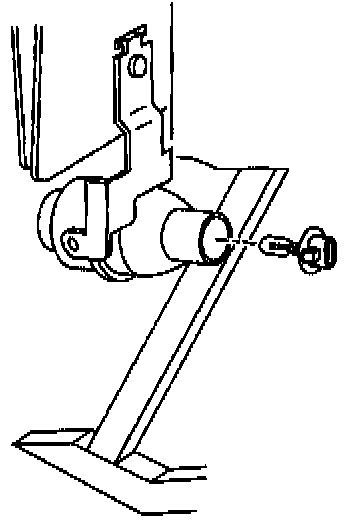

5. Remove the fog lamp bulb from the fog lamp. Twist the bulb to release.

INSTALLATION PROCEDURE

CAUTION: Refer to Halogen Bulb Caution Halogen Bulb Caution in Service Precautions.




1. Install the fog lamp bulb to the fog lamp assembly. Twist the bulb to secure.




2. Connect the front fog lamp electrical connector.




3. Position the brake caliper cooling duct to the front fascia, then push to secure.
4. Install the front fascia lower closeout panel.
5. Lower the vehicle.
6. Verify that the front fog lamps are aimed properly. Refer to Fog Lamp Aiming Procedure.
