Fog Lamp Replacement - Front (Assembly)

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle.
2. Remove the front fascia lower closeout panel.

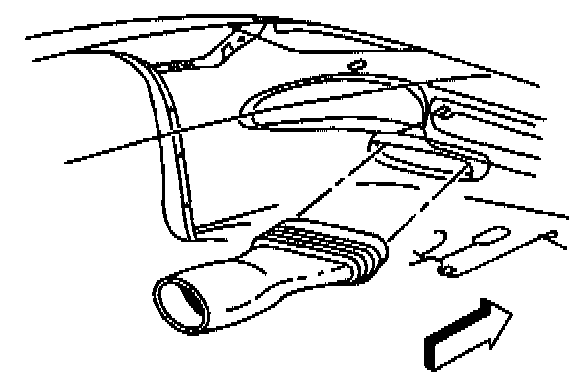

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.




4. Disconnect the front tog lamp electrical connector.

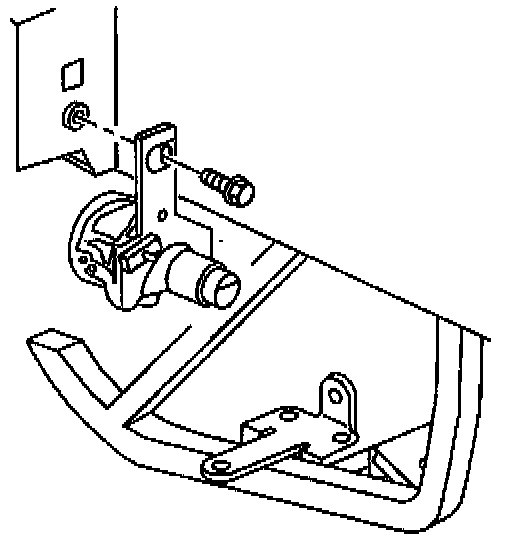

5. Remove the front fog lamp mounting bolt.
6. Remove the lamp from the vehicle.


INSTALLATION PROCEDURE




1. Position the front fog lamp to the front bumper impact bar.

Insert the fog lamp bracket alignment tab into the hole on the front bumper impact bar.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the front fog lamp mounting bolt.

Tighten
Tighten the front fog lamp mounting bolt to 1.9 N.m (17 lb in).




3. Connect the front fog lamp electrical connector.




4. Position the brake caliper cooling duct to the front fascia, then push to secure.
5. Install the front fascia lower closeout panel.
6. Lower the vehicle.
7. Verify that the front fog lamps are aimed properly. Refer to Fog Lamp Aiming Procedure.
