Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Hazard Warning Lamps
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

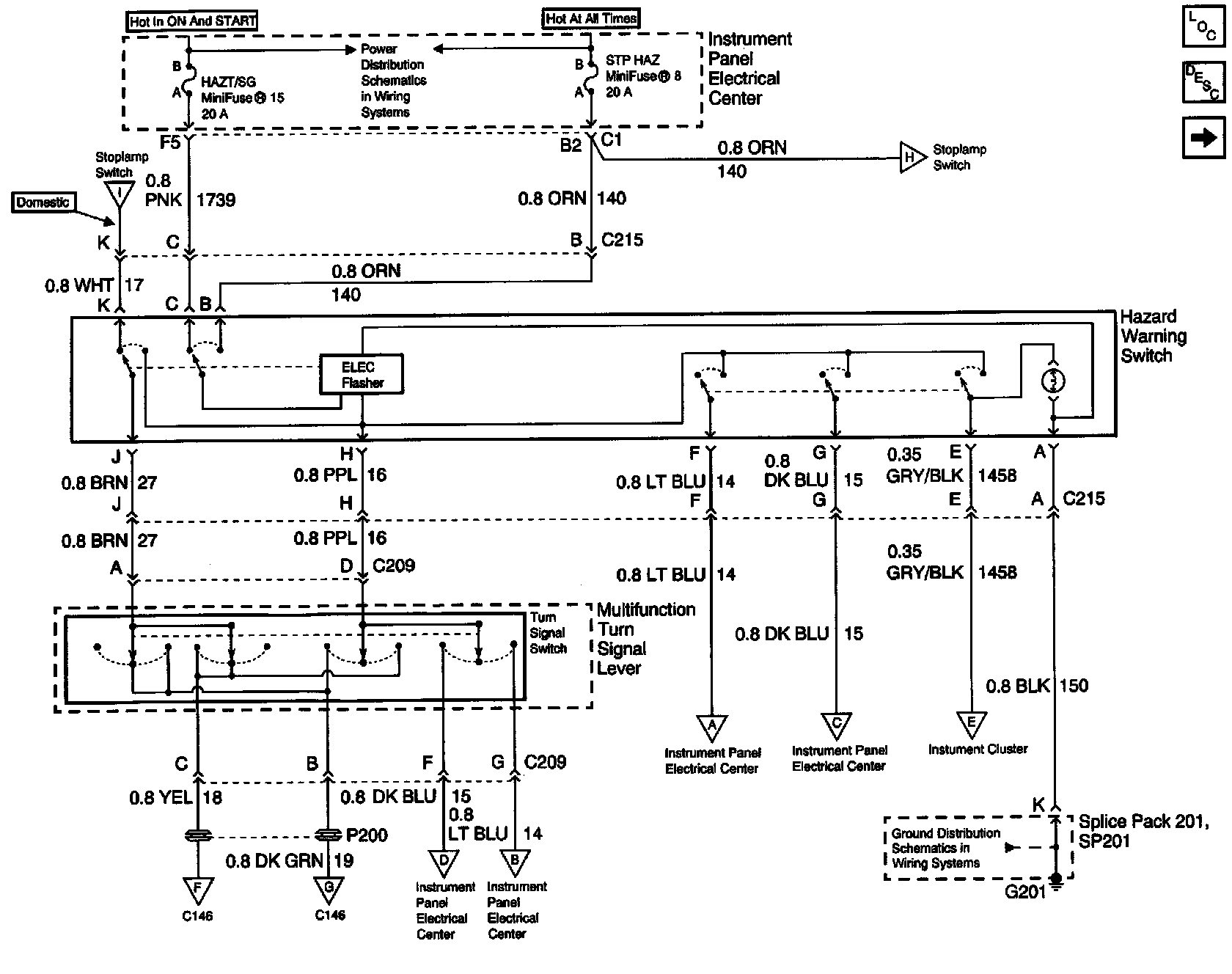

Extrior Lights Schematics: Hazard Warning And Turn Signal Switches:
