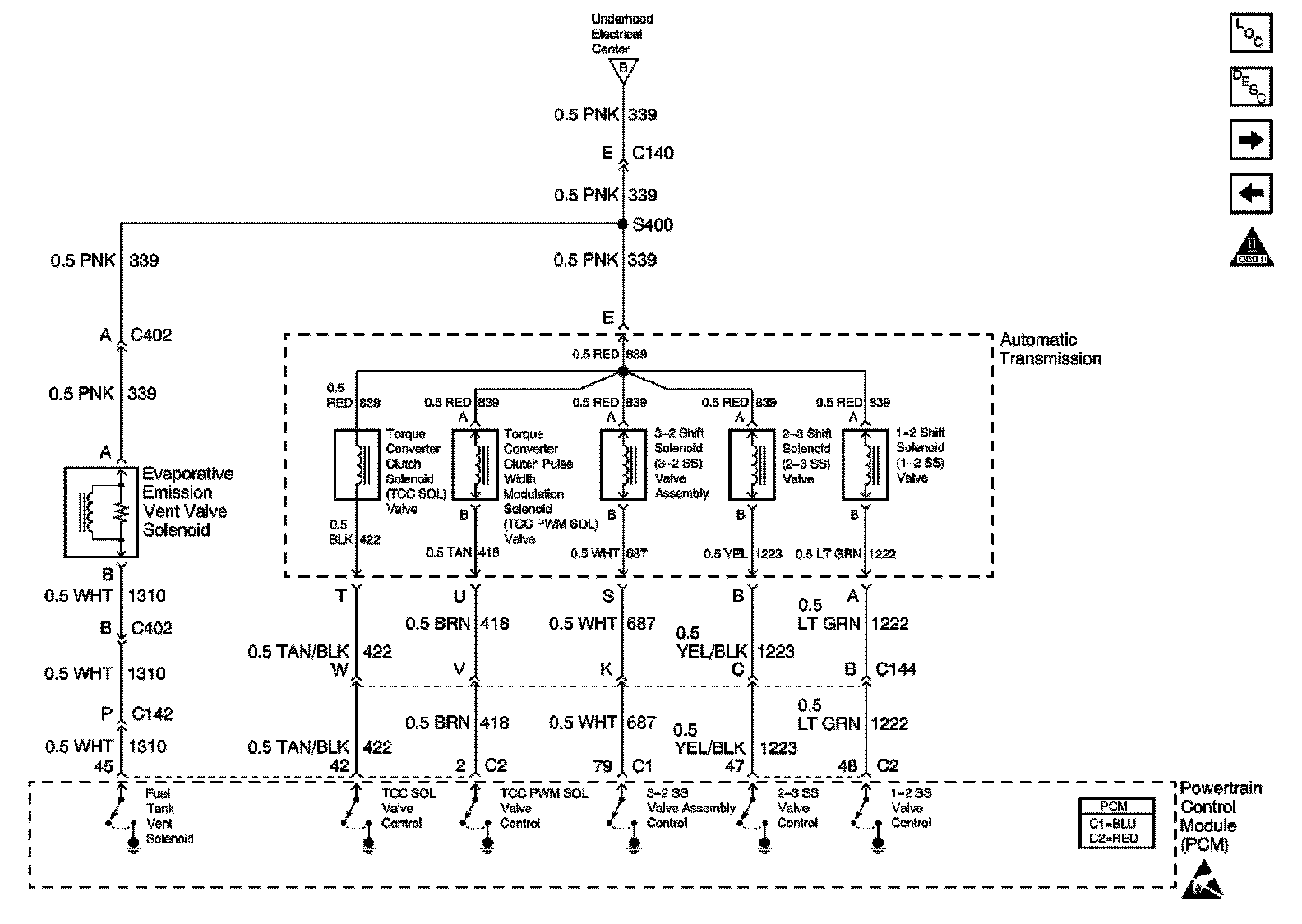

Engine Controls Diagram 20

Automatic Transmission Controls






Next Diagram Engine Controls Diagram 21

Previous Diagram Engine Controls Diagram 19

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
