Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Case and Associated Parts (1 of 2)

Case and Associated Parts (1 of 2)

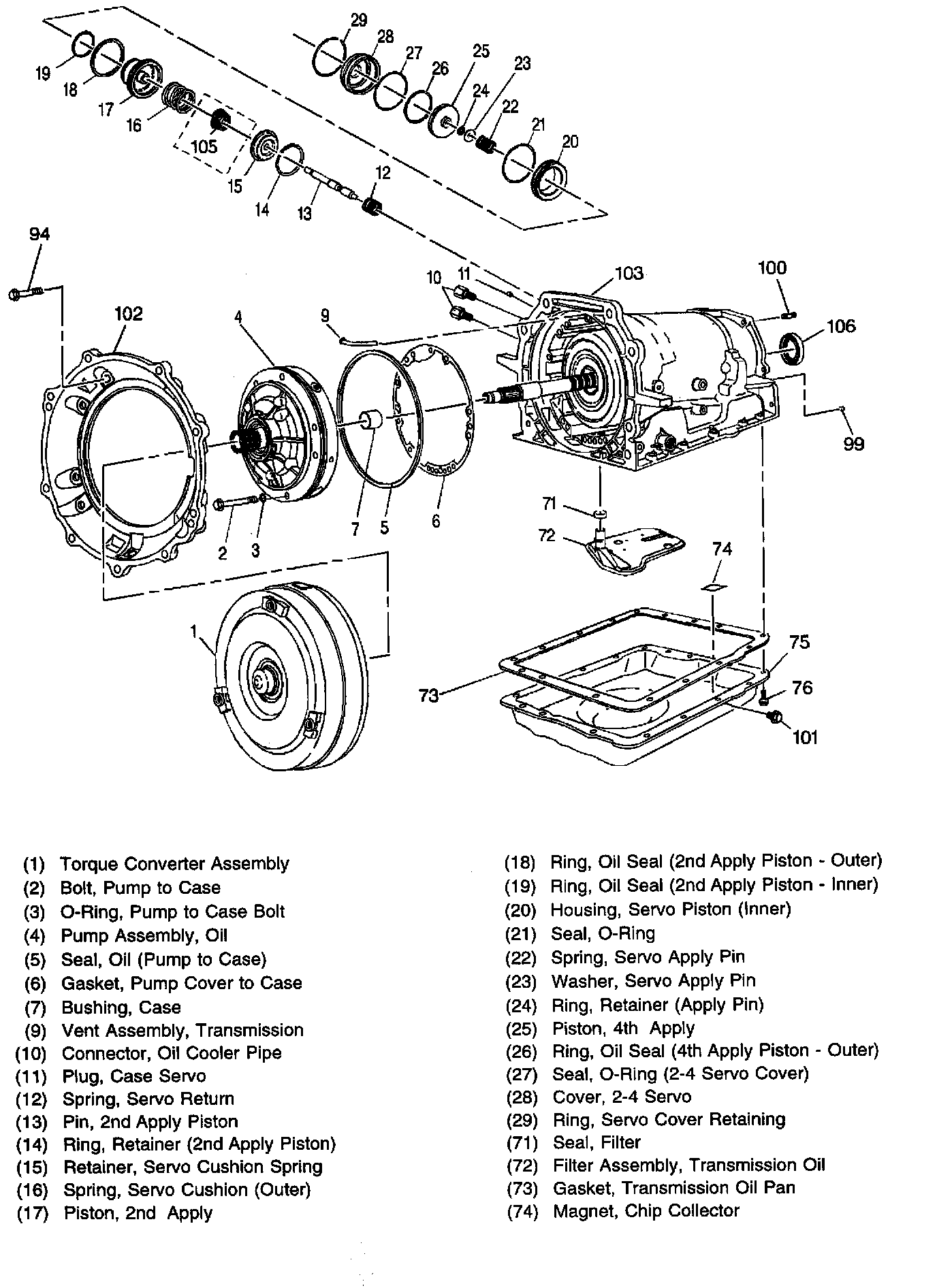

Part 1 of 2

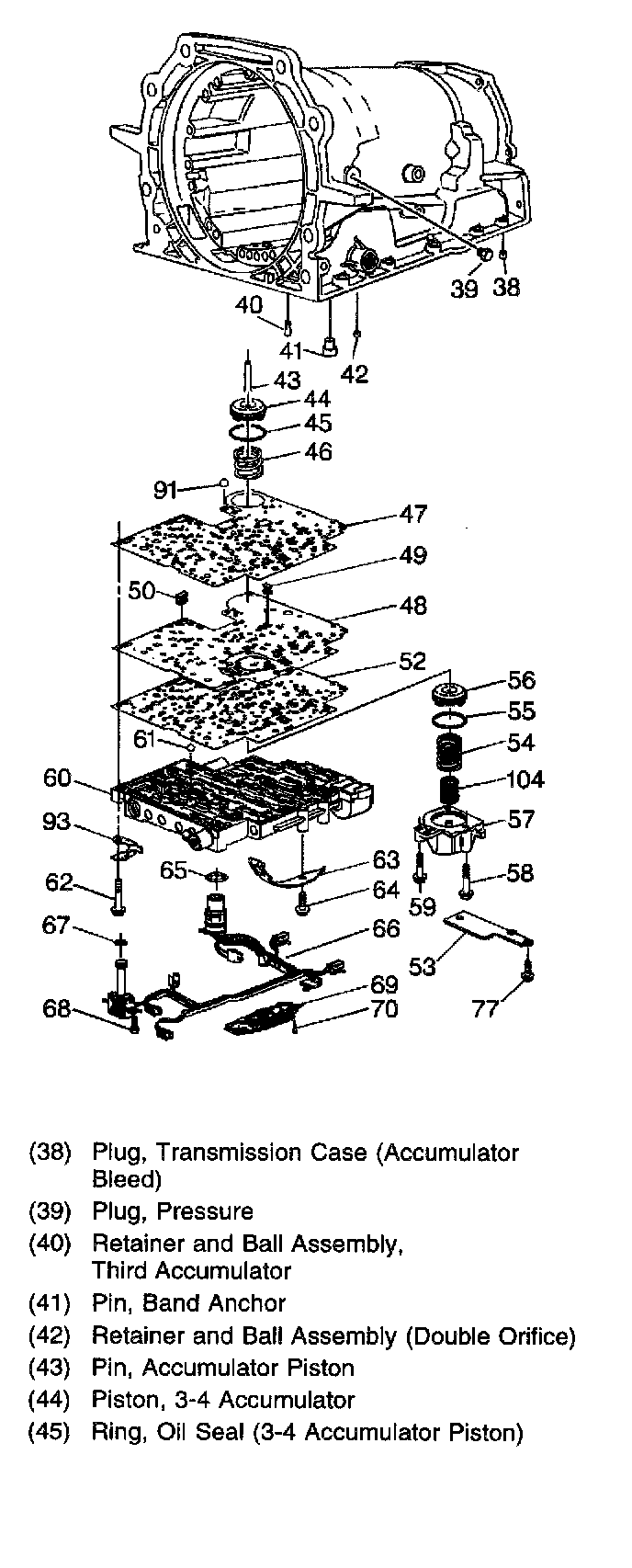

Part 2 of 3





Part 3 of 3
