Flywheel: Service and Repair

Removal Procedure





Notice:
- Failure to follow the proper removal and installation procedures may result in damage to the engine crankshaft thrust bearing.
- When tilting down the rear of the driveline, observe the clearance between the rear of the engine and the composite dash panel. Do not allow the engine to rest unsupported against the composite dash panel, or vehicle damage may result.
- When lowering and removing the rear of the driveline, observe the clearance between the rear of the transaxle assembly and the underbody to prevent damage.


- Tools Required
- J 42055 Transmission Support Fixture





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the exhaust system. Refer to Exhaust System Replacement in Exhaust System.
3. Remove the driveline support assembly with the transaxle. Refer to Driveline Support Assembly Replacement (Manual Transmission) or Driveline Support Assembly Replacement (Automatic Transmission) in Transmission and Drivetrain.

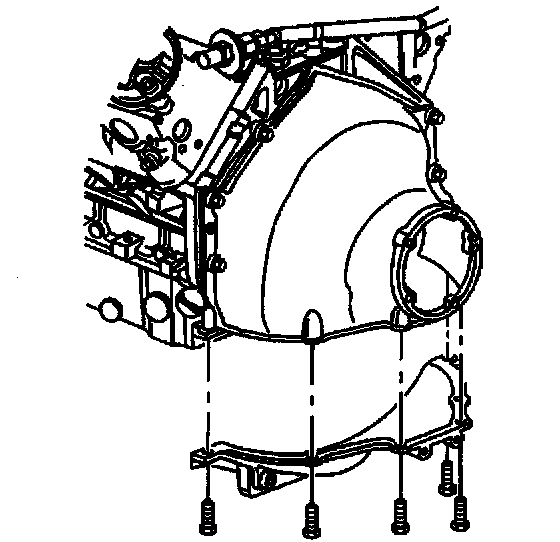

4. Remove the engine flywheel inspection cover retaining bolts.
5. Remove the engine flywheel inspection cover from the engine flywheel housing.

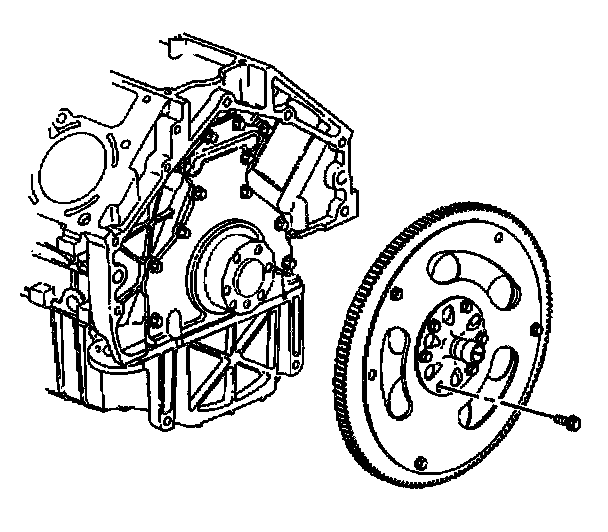

6. Remove the engine flywheel. Refer to Engine Flywheel Removal.

Installation Procedure

- Tools Required
- J 38836 Pilot Bushing Installer/Clutch Alignment Arbor

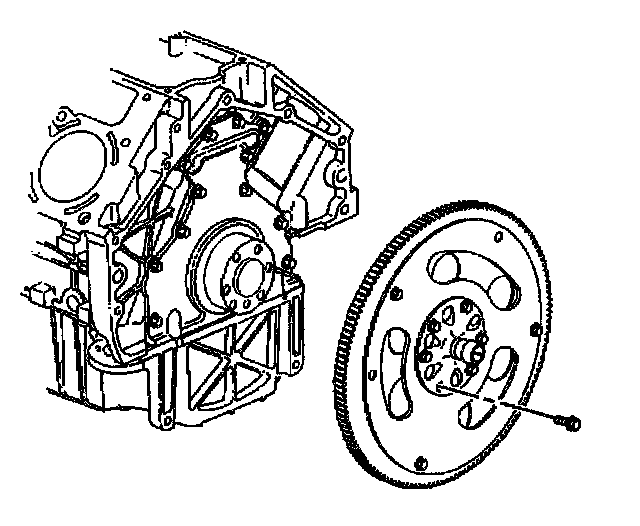

1. Install the engine flywheel. Refer to Engine Flywheel Installation.





2. Inspect the clutch pressure plate and the clutch driven plate for wear or damage. Repair or replace as necessary.
3. Adjust the clutch pressure plate, if necessary. Refer to Clutch Pressure Plate Adjustment (Off- Vehicle).
4. Install the clutch driven plate and clutch pressure plate to the engine flywheel.
5. Install the visible clutch pressure plate bolts finger-tight.
6. Rotate the engine flywheel.
7. Repeat steps 5 and 6 until all the bolts are installed finger-tight.

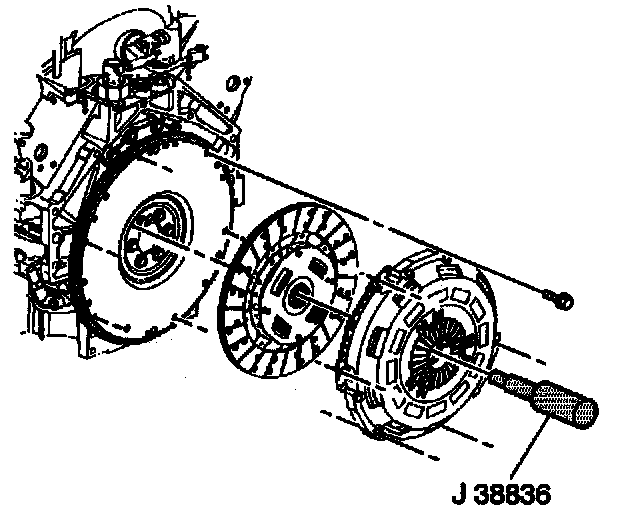

8. Using the J 38836, align the clutch driven plate to the pilot bearing.

Notice: Refer to Fastener Notice in Service Precautions.





9. Tighten the clutch pressure plate bolts.

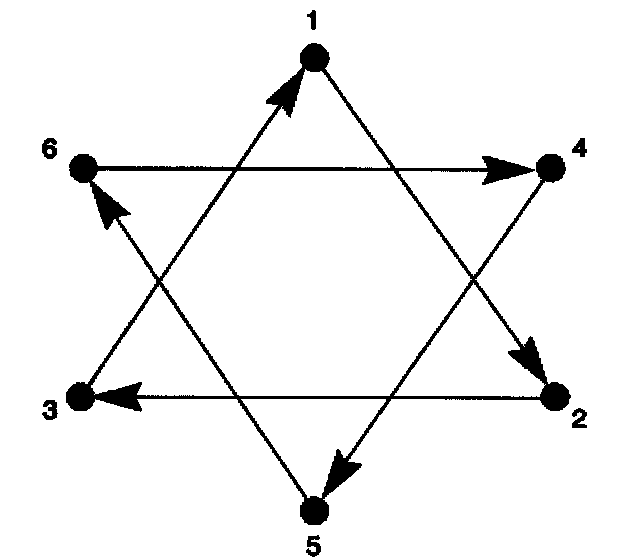

Tighten the clutch pressure plate bolts in sequence and evenly over 3 increments with the fourth increment to 50 Nm (37 ft. lbs.).





10. Install the engine flywheel inspection cover.
11. Install the engine flywheel inspection cover retaining bolts.
Tighten the engine flywheel inspection cover retaining bolts to 25 Nm (18 ft. lbs.).
12. Install the driveline support assembly and the transaxle. Refer to Driveline Support Assembly Replacement (Manual Transmission) or Driveline Support Assembly Replacement (Automatic Transmission) in Transmission and Drivetrain.
13. Install the exhaust system. Refer to Exhaust System Replacement in Exhaust System.
14. Lower the vehicle.
