Antenna Extension Cable Replacement

REMOVAL PROCEDURE




1. Remove the radio.
2. Remove the instrument panel storage compartment.

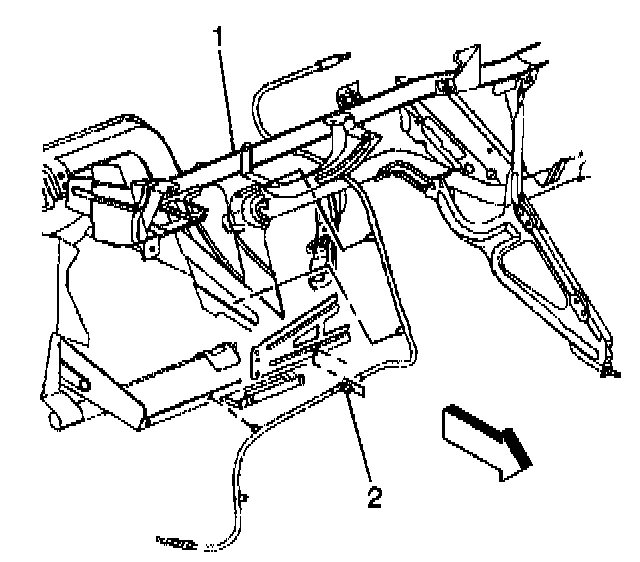

3. Remove the antenna extension cable retainers (2) from the instrument panel (1)




4. Remove the right side carpet retainer.
5. Pull back the carpet in order to gain access to the antenna extension cable (2). Refer to Carpet Replacement - Front in Interior Trim.
6. Disconnect the antenna extension cable (2) from the main body harness (1).
7. Remove the antenna extension cable (2) from the vehicle.

INSTALLATION PROCEDURE




1. Install the antenna extension cable (2) to the vehicle.




2. Connect the antenna extension cable (2) to the main body harness (1).
3. Reposition the carpet. Refer to Carpet Replacement - Front in Interior Trim.
4. Install the right side carpet retainer.
5. Install the antenna extension cable rosebud retainers (2) to the instrument panel (1).
6. Install the instrument panel storage compartment.
7. Install the radio.
