Grille: Service and Repair

Grille Replacement

Removal Procedure

1. Open the hood.

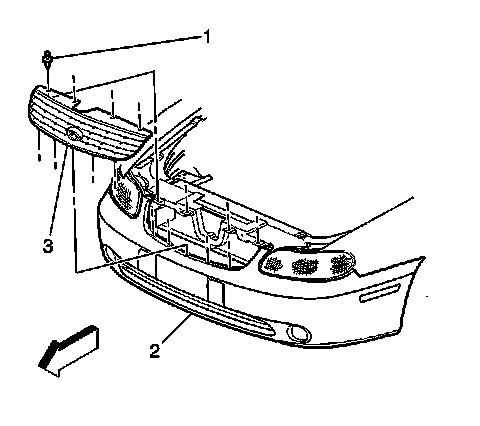

2. Remove the push-in retainers (1) from the upper edge of the grille.
3. Disconnect the grille (3) from the fascia (2).

Installation Procedure




1. Connect the grille (3) to the fascia (2).
2. Install the push-in retainers (1) along the upper edge of the grille.
3. Close the hood.
