Mirror Replacement

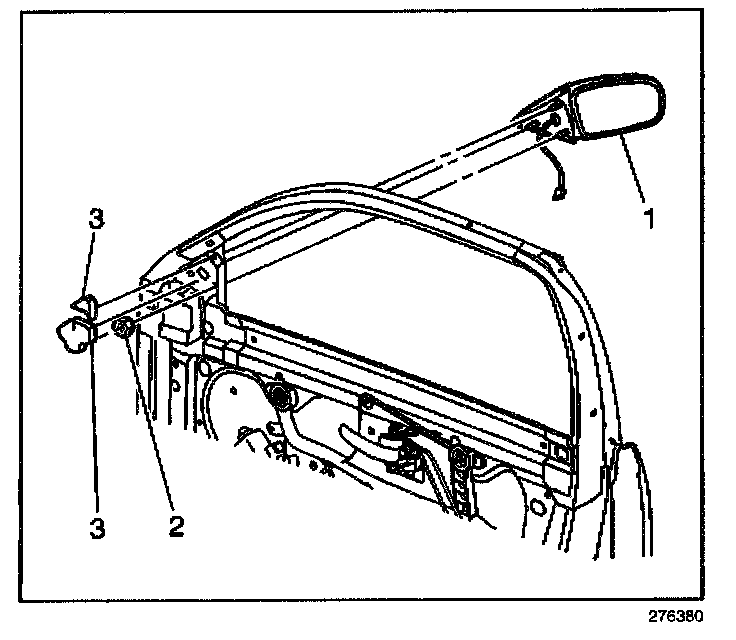

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove the remote control from the outside rearview mirror remote control bezel (manual only).
3. Disconnect the power mirror wire harness (power only).
4. Remove the front door inner panel mirror insulator (3).
5. Remove the outside rearview mirror nuts (2).
6. Remove the outside rearview mirror (1).

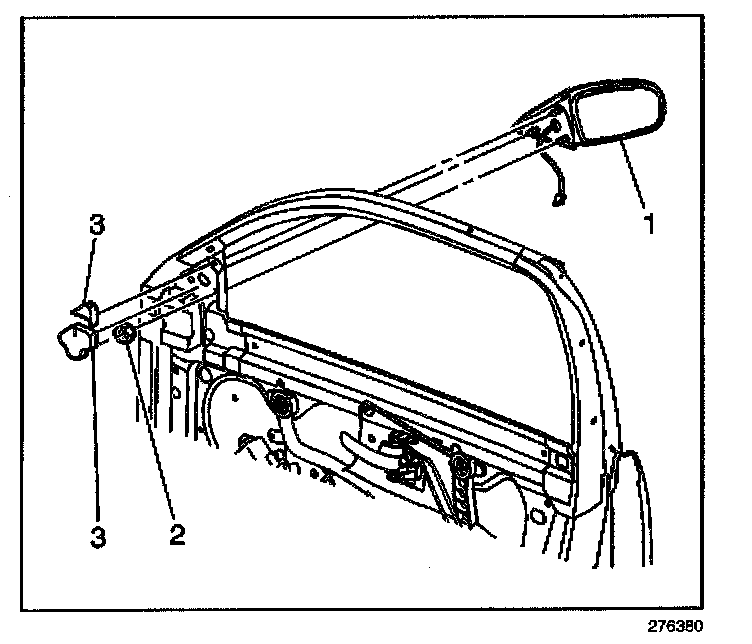

INSTALLATION PROCEDURE




1. Install the outside rearview mirror.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the outside rearview mirror nuts (2). Tighten the nuts in the following order:
2.1. Top
2.2. Forward
2.3. Rear

Tighten
Tighten the nuts to 10 N.m (89 lb in).

3. Install the front door inner panel mirror insulator (3).
4. Connect the power mirror wire harness (power only).
5. Install the remote control to the outside rearview mirror remote control bezel (manual only).
6. Install the door trim panel.
