Seat Adjuster Horizontal Actuator Replacement

Seat Adjuster Horizontal Actuator Replacement

Removal Procedure

1. Remove the seat.




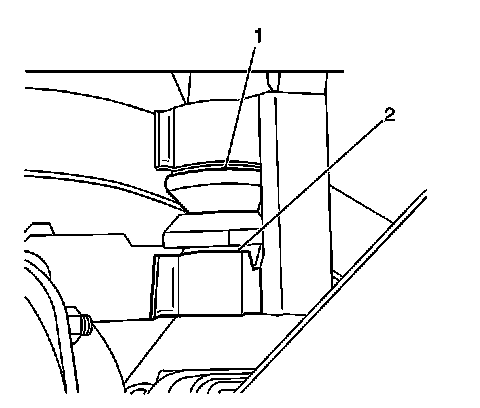

2. Remove the seat actuator assembly bolts (2) from the seat frame assembly (1).




3. Remove the wire harness retainer (2) from the seat track brace.




4. Remove the seat track brace bolts and brace.

Installation Procedure






Notice: Refer to Fastener Notice in Service Precautions.

1. Install the seat track brace bolts and brace.

Tighten the track brace bolts to 16 N.m (12 lb ft).




2. Install the wire harness retainer (2) to the seat track brace.




3. Install the seat actuator assembly bolts (2) to the seat frame assembly (1).

Tighten the actuator bolts to 16 N.m (12 lb ft).
