Seat Horizontal and Vertical Drive Cable Replacement

Seat Horizontal and Vertical Drive Cable Replacement

Removal Procedure

1. Remove the front seat.

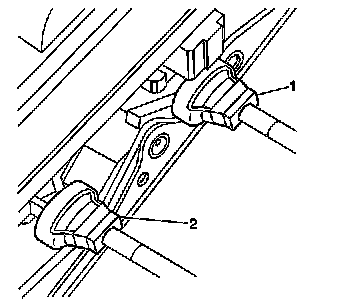

2. Squeeze the oblong connectors (1 and 2) at the following locations in order to disconnect the cables:

* The motors
* The vertical/horizontal actuators

Installation Procedure




1. Connect the cables by pushing to the connectors (1 and 2) until you hear an audible click is heard.
2. Install the front seat.
