Seat Replacement

Seat Replacement





The following components secure the front seats to the floor pan:

* Two front hook attachments
* Two rear bolts installed to nuts that are welded to the floor pan

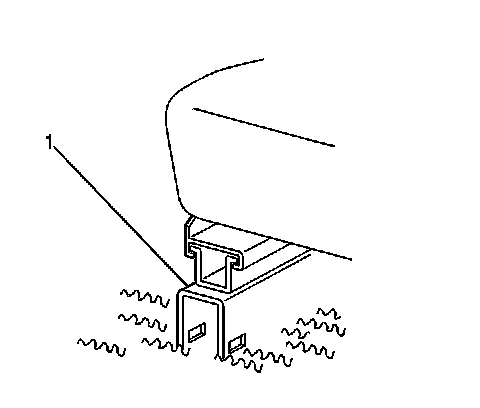

The manually operated two-way front adjusters provide only fore and aft movement of the seat. The seat adjuster handle is located on the front side of the seat. When the seat adjuster handle is pulled up, the seat adjusters (1) unlock. This action permits travel of the seat. When the seat is in the desired position, and the seat adjuster handle is released, the seat locks into place.

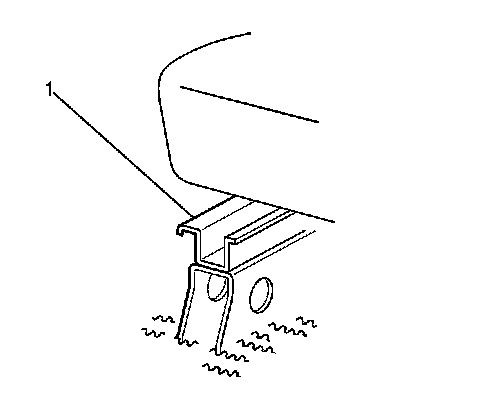

The power operated six-way seat adjuster (1) (driver's side only) is activated by three motors. These motors possess the following characteristics:

* 12 volt
* Reversible
* Permanent magnet motors
* Built-in circuit breaker

A switch mounted on the seat cushion outer trim panel energizes the motors.

The three motors drive the following components:

* A front vertical actuator
* A rear vertical actuator
* A horizontal actuator

When the adjusters reach the limit of travel, torque is absorbed through the rubber mounted grommets. The grommets are located between the motor and the support. The circuit provides an overload relay if excessive torque is applied to the motor.

Removal Procedure




1. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).
2. Remove the seat adjuster attaching bolts (1).
3. Disconnect the seat belt wiring harness (driver's side only).
4. Disconnect the power seat electrical connector, if equipped, (driver's side only).
5. Remove the front seat. Manually tilt the seat forward in order to disengage the hooks from the floor pan.

Installation Procedure

1. Install the front seat. Manually tilt the seat forward in order to engage the hooks to the floor pan.
2. Connect the power seat electrical connector, if equipped, (driver's side only).
3. Connect the seat belt wiring harness (driver's side only).




4. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the seat adjuster bolts (1).

Tighten the seat adjuster bolts (1) to 40 N.m (30 lb ft).
