Sound Proofing / Insulation: Service and Repair

Front Fender Insulator Replacement

Removal Procedure

1. Remove the front wheelhouse panel liner.

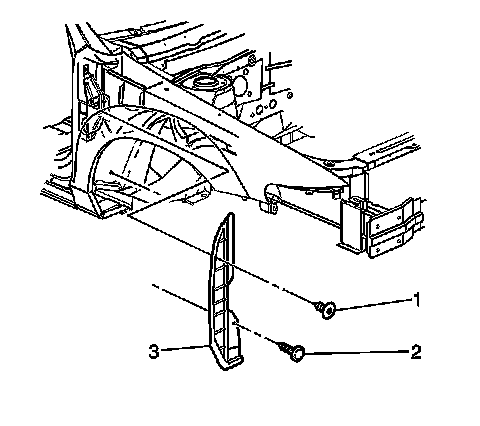

2. Remove the front fender insulator bolts (1).
3. Remove the front fender insulator retainer (2).
4. Remove the front fender insulator (3).

Installation Procedure




1. Install the front fender insulator (3).
2. Install the front fender insulator retainers (2).
3. Install the front fender insulator bolts (1).
4. Install the front wheelhouse panel liner.
